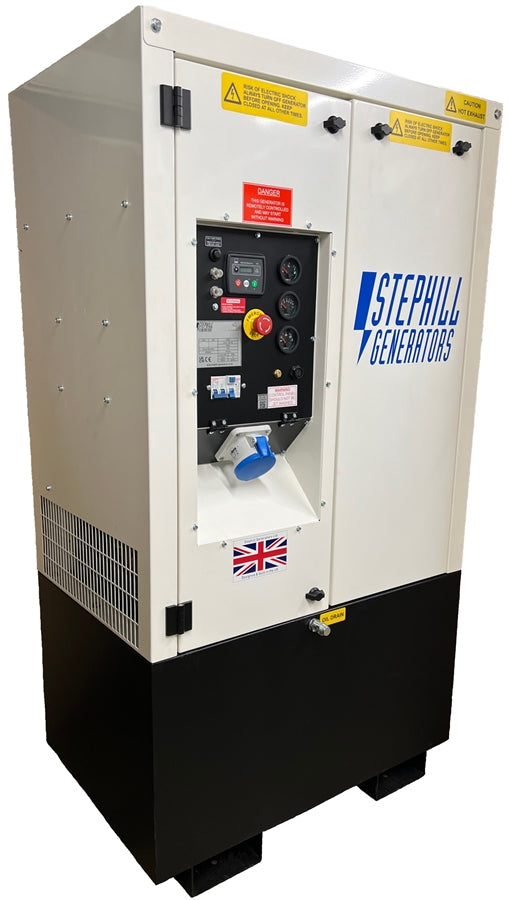

Stephill SSDK10W3T 10.0kVA Super Silent Welfare Diesel Generator

STANDARD FEATURES

• Plug-in remote start/stop control box - details below. Our standard spec requires the remote start/stop module to operate. (conversion to manual & 2-wire starting option upon request)
• Low oil pressure and high engine temperature shutdowns. Low fuel level warning
• Battery isolator & emergency stop button for safety
• Heavy duty base with fork lift pockets.
• Oil drain facility
• Bunded fuel tank
• Removable door for ease of access

CONTROL PANEL

• DSE 3110 control module - details below
• MCB overload protection
• RCD earth leakage protection
• 1 x 230V 63A BS4343 socket
• Fuel, oil & temperature gauges
• Fuel pump prime button (easy bleed upon service)
• Emergency stop
• Remote start socket

DEEP SEA ELECTRONICS 3110 START/STOP CONTROL MODULE

• The module will display warnings, shutdowns & engine status information on the back-lit LCD screen
• Engine shutdowns include, high engine temperature & low oil pressure. Low fuel level warning
• Monitoring & protecting AC volts & frequency (Hz)
• Hours run counter
• Battery voltage monitoring
• Remote start function

REMOTE START/STOP MODULE

• Fully compatible remote start/stop control module, complete with low oil pressure, high engine temperature and low fuel level shutdown indicators
• Power down mode - zero DC battery drain when in stop mode
• Easy fit - plugs onto a control panel socket
• Standard 5M cable length (longer on request)

GENERATOR SPECIFICATION

• Voltage: 240 V
• Phase: 1
• Frequency: 50 Hz
• Stand-By-Power (ESP): 10.2 kVA / 8.2 kW
• Continuous Power (COP): 9.0 kVA / 7.2 kW
• Alternator: Sincro SK160CA 12kVA
• AVR: BL4-U +/- 1%
• Fuel Tank Capacity: 195 Litres
• Autonomy 100% load: 70 Hours | 2.8 L/h
• Autonomy 75% load: 102 Hours | 1.9 L/h
• Autonomy 50% load: 162 Hours | 1.2 L/h
• Autonomy 25% load: 325 Hours | 0.6 L/h
• LWA: 84 Hours
• dBA @ 7M: 59
• dba @ 4M: 64

ENGINE SPECIFICATION

• Engine: Kubota D1105-BG
• Emissions Certified: EU Stage V
• Cylinders: 3
• Aspiration: Naturally aspirated
• Cooling: Water cooled
• Displacement: 1123cc
• Rpm: 1500
• Net Engine Power: Stand-by 9.5 kWm. Continuous 8.4 kWm

DIMENSIONS (mm) & WEIGHT (KG)

• Length: 954mm
• Height: 685mm
• Width: 1805mm
• Weight: 478kg (dry), 648kg (wet)

Standby Power (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.

Continuous Power (COP) : Applicable for supplying power to electrical load for unlimited hours.

Both are in accordance with ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.
