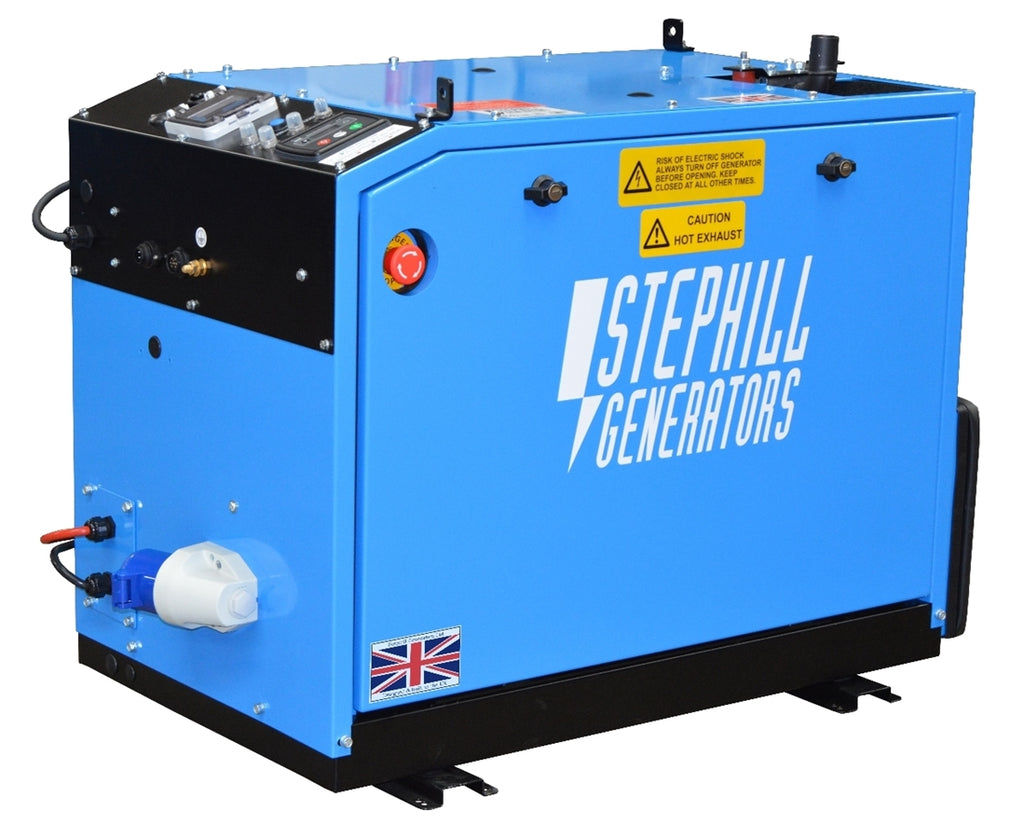

Stephill SSD6000W2 6.0kVA Super Silent Welfare Diesel Generator

STANDARD FEATURES

• DSE 3110 control module.
• Low oil pressure, high engine temperature and low fuel level shutdowns.
• Manual and/or 2-wire remote start
• Compact designed acoustic low noise, low vibration cabinet

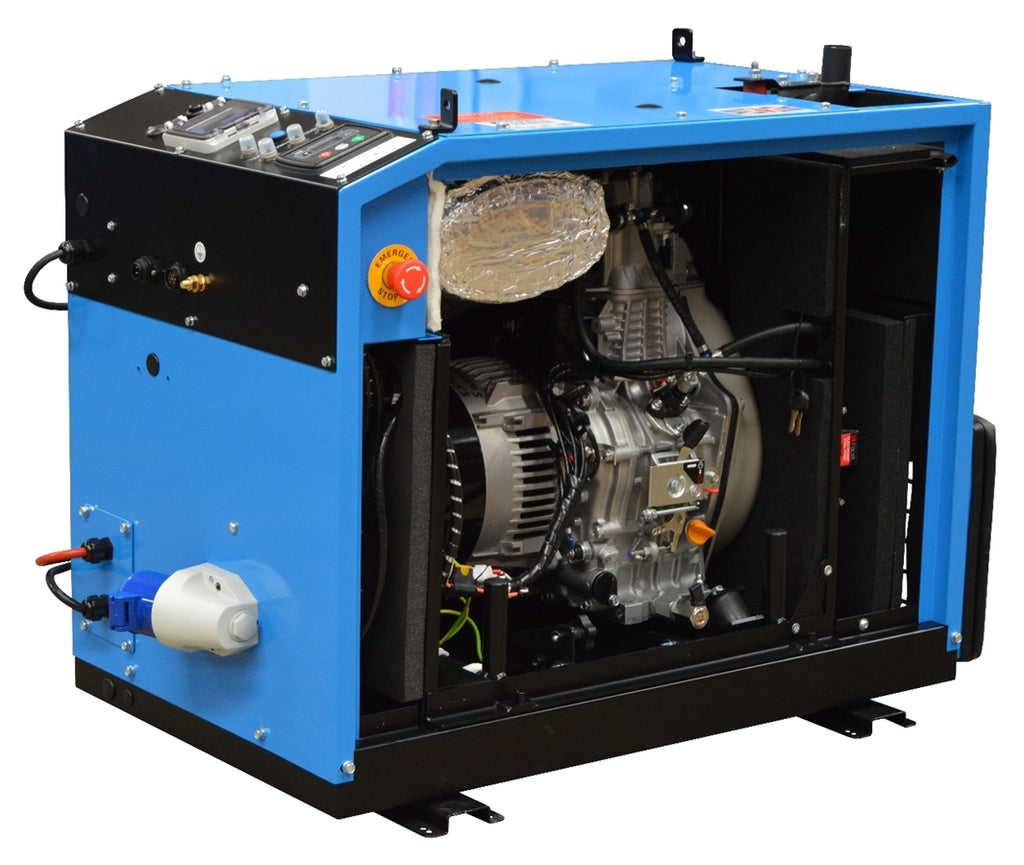

• Removable door for complete access to service side.

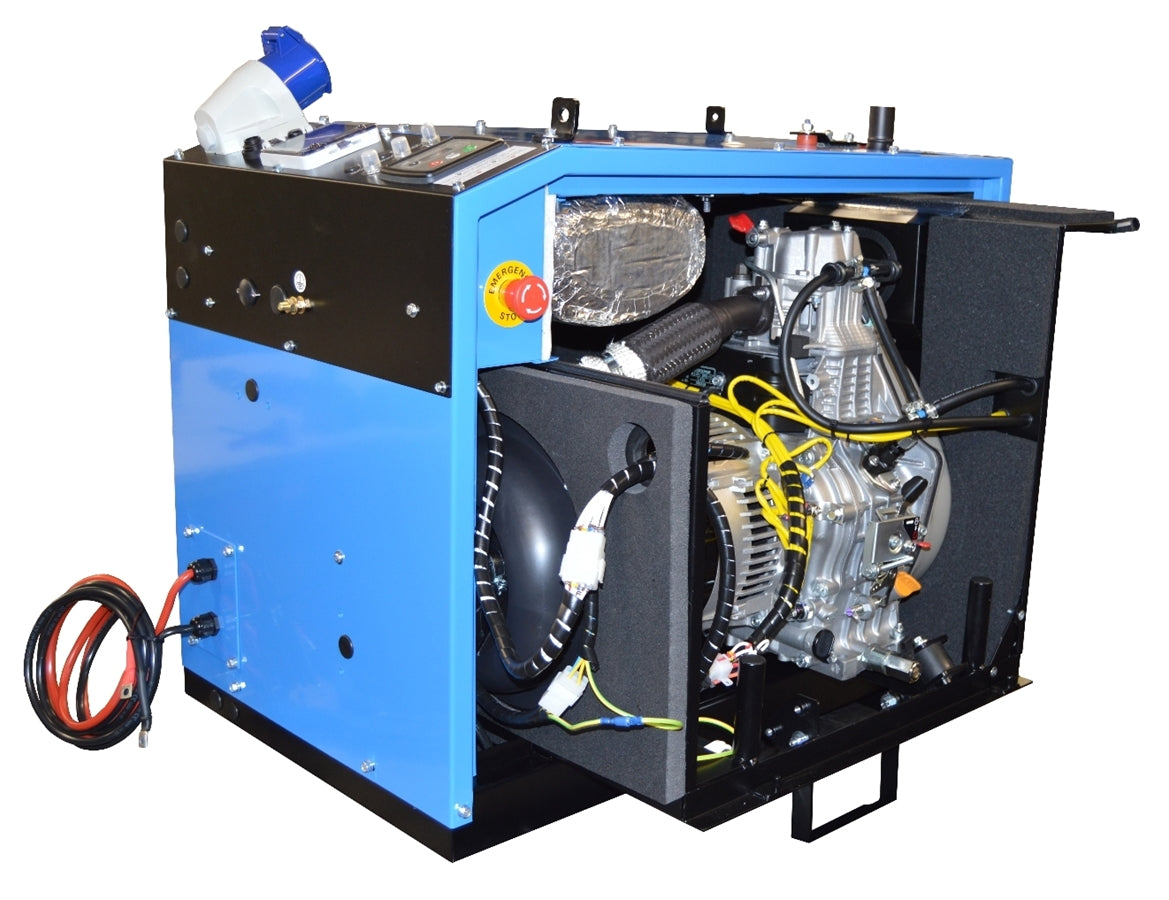

• Generator slides out from canopy for easy inspection & maintenance.
• Removable inspection roof.
• Emergency stop button for safety.
• Oil drain facility.
• 12V DC battery charging system

CONTROL PANEL

• MCB Overload protection.
• RCD Earth leakage protection (100mA)
• 1x 32A 230V BS4343 socket - can be located on the control panel or canopy side panel.
• Fuel pump prime button (easy bleed upon service).
• Connecting cable supplied for low fuel signal to a compatible fuel sender.

DEEP SEA ELECTRONICS 3110 AUTO START CONTROL MODULE

• The module will display warnings, shutdowns & engine status information on the back-lit LCD screen
• Engine shutdowns include, high engine temperature, low oil pressure and low fuel level.
• Monitoring & protecting AC volts & frequency (Hz).
• Hours run counter.
• Battery voltage monitoring.
• Remote 2-wire start function.

GENERATOR SPECIFICATION

• Voltage: 240 V
• Phase: 1
• Frequency: 50 Hz
• Prime Power (PRP): 6.0 kVA / 4.8kW
• Alternator: Meccalte S20W-95
• LWA: 90
• dBA @ 7M: 65

ENGINE SPECIFICATION

• Engine: Yanmar L100V
• Emissions Certified: EU Stage V
• Cylinders: Single
• Distribution: O.H.V.
• Aspiration: Naturally Aspired
• Cooling: Air
• Displacement: 0.435litres
• Rpm: 3000

DIMENSIONS

• Length: 960mm
• Width: 550mm
• Height: 730mm
• Weight: 178kg
