Description
Key Features
- Prime power 10 kVA / 8 KW
- Kubota D722-E4B diesel engine
- Electric starting system
- Super low noise acoustic canopy – 67 dba @ 7m
- Optional Wheel kit & road trailer

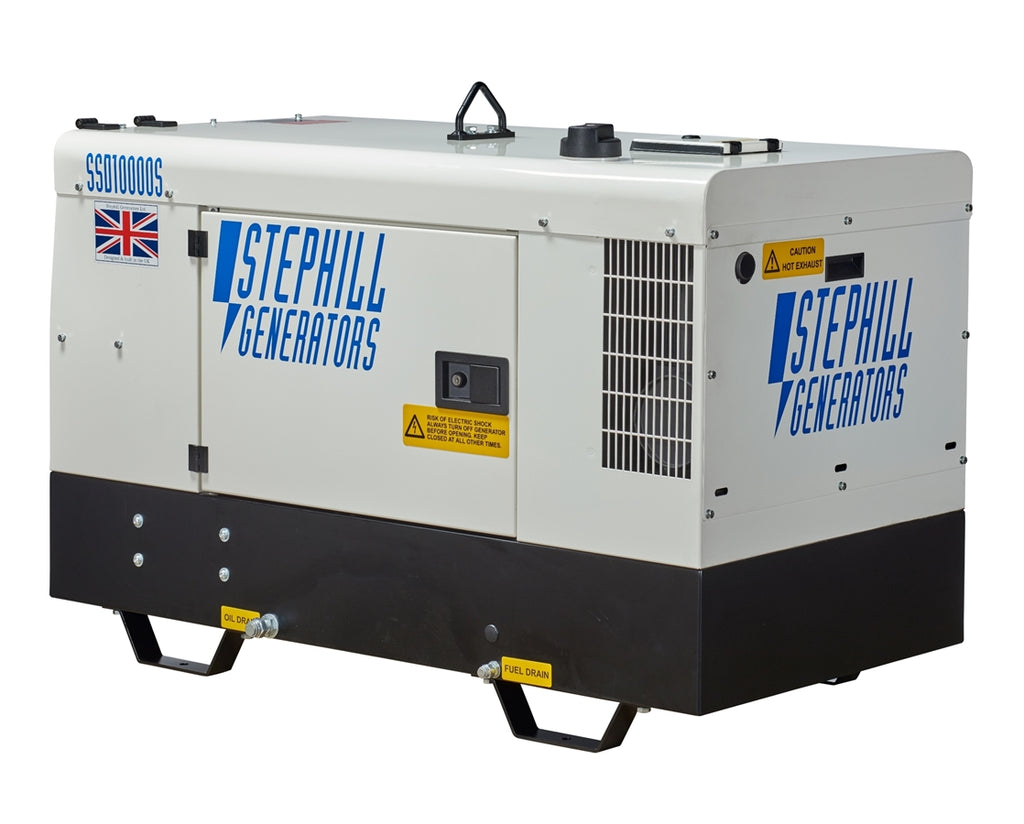

The Stephill SSD10000S 10 kVA Super Silent Diesel Generator.
From the SS (Super Silent) diesel generator series, the Stephill SSD10000S is reliability economical thanks to the robust Kubota D722-E4B engine. The Overhead Valve (OHV) engine produces 10 kVA / 8 KW of power effortlessly and has been designed to be quiet, rugged and durable. The SS diesel generator range all have close fitting acoustic canopies and can be mounted on a two wheel industrial site trolley. Or can be put on a road going trailer and towed. The SS range are made for demanding applications such as the construction industry and hire sector.
Power Rating of the Stephill SSD10000S
It has a prime power rating of 10 kVA / 8 KW.
This canopied portable diesel generator is extremely compact and robust, so can be stored with ease in the smallest of spaces. With a generous fuel tank of 37 L, the Stephill SSD10000S super silent diesel generator is perfect for your next project. Plus, its surprisingly light, just 301KG. With an easy-to-use configuration this diesel generator gives you a fantastic balance between performance and price.
Is the Stephill SSD10000S Easy to Start and Use?

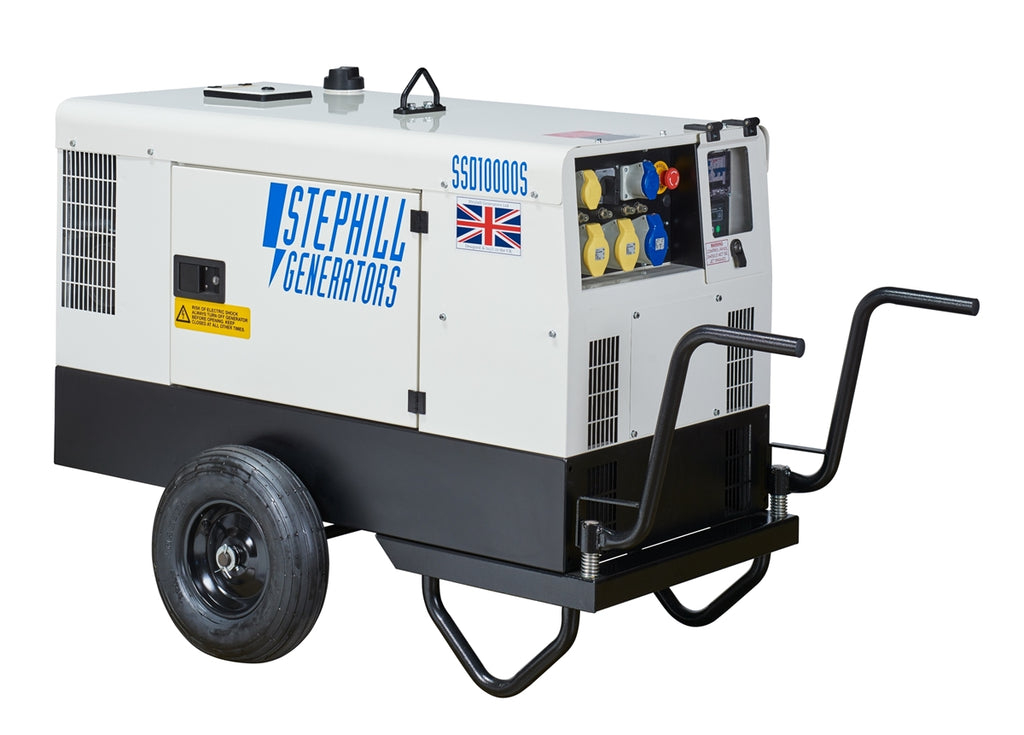

You bet it is – simply turn the key and up it starts! The electric key start makes starting straightforward and easy. The optional industrial two wheel trolley makes moving this generator around a total breeze, also there is a lifting eye. There is also a road going trailer available as an optional extra.
There are 1 x 16A & 2 x 32A 115V plus 1 x 16A & 1 x 32A 230V BS4343 sockets to connect your electrical equipment up to. Also this unit has low oil shutdown, the generator has a reset circuit breaker overload protection.
Deep Sea Control On The Stephill SSD10000S
The power produced by the Stephill SSD10000S is controlled with the DSE 3110 control module.The module will display warnings, shutdowns & engine status information all on a back-lit LCD screen. Engine shutdowns include, high engine temperature, low oil pressure, and low fuel level warning.
Low Noise Levels
You might think having a portable diesel generator will be very noisy. Well think again; the Stephill SSD10000S is surprisingly quiet at 72 dBA @ 7 metres.
Main Features :
- Frequency Hz 50
- Voltage V 110 / 230
- Phase 1
Prime Power Rating :
- 10 kVA
- 8 KW
Engine Specifications :
- Engine Manufacturer Kubota
- Model D722-E4B
- Displacement 719cc
- Cylinders 3
- Emissions certified EU Stage V
- Engine cooling system Water cooled
- Aspiration Natural
- Operating Speed-Nominal rpm 3000
- Speed governor Mechanical
- Starting system Electric key start
- Kubota D722-E4B
Alternator Specifications :
- Type Brushless
- NSM C112 SB
- IP protection 23
- Poles 2
- Frequency Hz 50
- Voltage V 230 / 115
Dimensional Data :
- Length (L) mm 1285
- Width (W) mm 655
- Height (H) mm 900
- Dry weight Kg 301
- Fuel tank capacity l 37
Fuel Consumption:
- Running time @ 25% 41 Hours (0.9 L/h)
- Running time @ 50% 20 Hours (1.8 L/h)
- Running time @ 75% 13 Hours (2.8 L/h)
- Running time @100% 10 Hours (3.7 L/h)
Noise Level :
- Guaranteed noise level (LWA) dB(A) 92
- Noise pressure level @ 4 m dB(A) 72
- Noise pressure level @ 7 m dB(A) 67
Socket Type :
- 1 x 16A 230V
- 1 x 32A 230V
- 2 x 32A 115V
- 1 x 16A 115V
