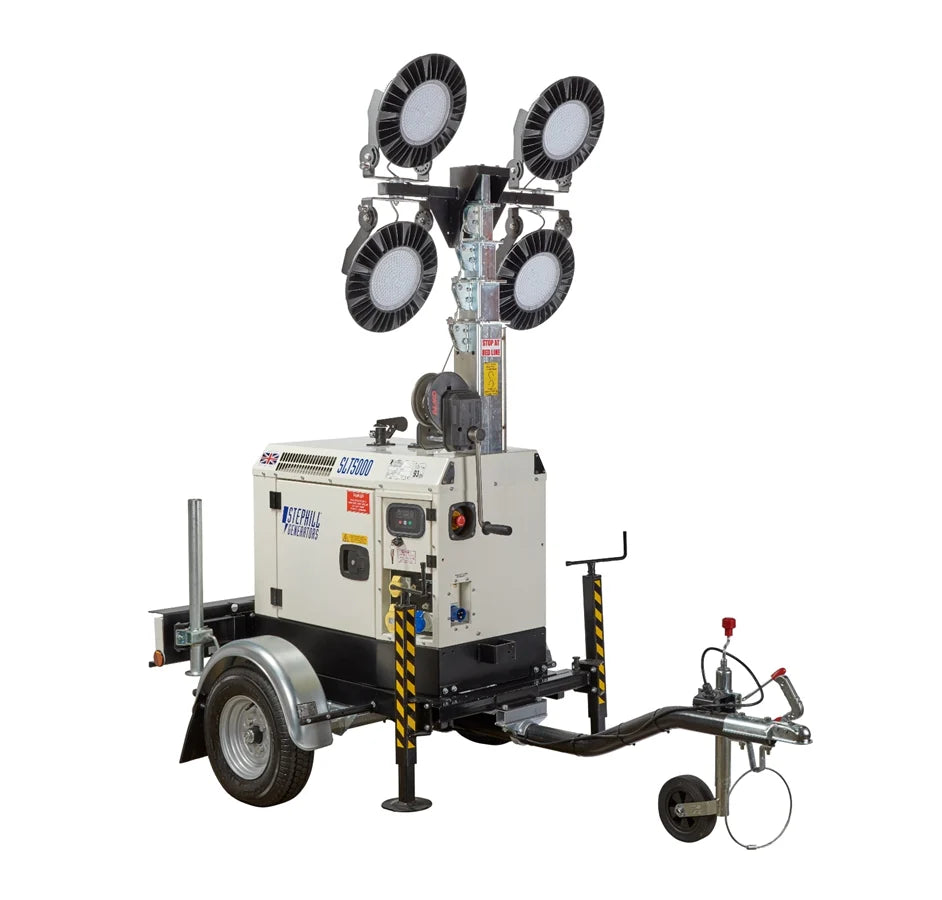

Stephill SLT5000HT 4.5kVA Super Silent Diesel Generator Lighting Tower with Road Trailer

4 x 200 watt LED lighting heads mounted on a 5.4m hand operated mast. Highly portable, quickly and easily erected by a single operator. Extremely versatile with lights operating while using either 115V or 230V AC generator outputs. Yanmar L70 electric start air cooled diesel engine coupled to a Meccalte alternator.

Safety Features

New for 2020 - The SLT5000 now incorporates a mast anticollapse safety device. This safety system becomes active upon raising, whilst fully erected and lowering the mast. In the unfortunate event of the main rope breaking the anti-collapse safety device will automatically lock the mast and prevent it falling.

Features

• Lights operational with either 115 or 230V selected.
• 4.5kVA generator dual voltage output
• 230V auxiliary socket for mains feed to the lights
• Fully adjustable tilt and turn light heads
• Adjustable stabiliser legs.
• Braked industrial four wheeled trolley kit.
• Low oil pressure, high engine temperature & low fuel level shutdowns
• Acoustic weatherproof canopy
• Lifting eye.
• Bunded fuel tank.
• Oil drain facility.

Control Panel

• DSE 3110 control module.
• Double pole MCB overload protection
• AC voltage selector switch.
• 1x 16A 230V BS4343 socket.
• 1x 32A & 1 x 16A 115V BS4343 sockets
• Overload protection for each individual socket.
• Generator/auxiliary mains switch for the lights.
• Emergency stop button.
• Fuel gauge.
• Fuel pump prime button (easy bleed upon service)
• Lockable control panel cover.
• Optional item (CALL FOR QUOTE) - 7-day programmable start/stop timer.

DSE 3110 Auto Start Control Module

• The module will display warnings, shutdowns & engine status information on the back-lit LCD screen.
• Engine shutdowns include, high engine temperature & low oil pressure. Low fuel level warning.
• Monitoring & protecting AC volts & frequency (Hz)
• Hours run counter.
• Battery voltage monitoring
• Licence free PC software

Road Trailer

Fully certified to 2007/46/CE ball hitch road tow trailer kit option
