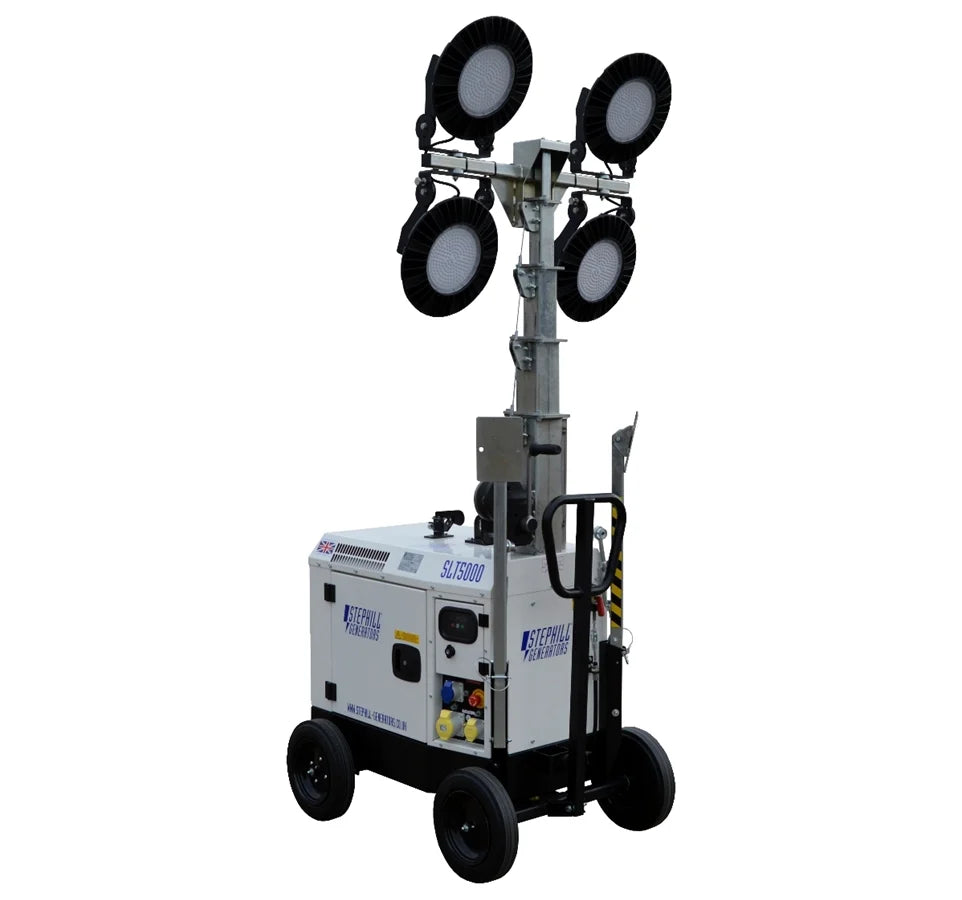

Stephill 800W LED Super Silent Mobile Diesel Generator Lighting Tower

4 x 200 watt LED lighting heads mounted on a 5.4m hand operated mast. Highly portable, quickly and easily erected by a single operator. Extremely versatile with lights operating while using either 115V or 230V AC generator outputs. Yanmar L70 electric start air cooled diesel engine coupled to a Meccalte alternator. *NEW FOR 2020 – Mast anti-collapse safety device fitted.

Control Panel

• DSE 3110 control module.
• Double pole MCB overload protection.
• AC voltage selector switch.
• 1 x 16A 230V BS4343 socket
• 1 x 32A & 1 x 16A 115V BS4343 sockets
• Overload protection for each individual socket.
• Generator/auxiliary mains switch for the lights.
• Emergency stop button.
• Fuel gauge.
• Fuel pump prime button (easy bleed upon service).
• Lockable control panel cover.
• Optional item – 7-day programmable start/stop timer

Standard Features

• Lights operational with either 115 or 230V selected.
• 4.5kVA generator dual voltage output
•  230V auxiliary socket for mains feed to the lights.
• Fully adjustable tilt and turn light heads.
• Adjustable stabiliser legs.
• Braked industrial four wheeled trolley kit.
• Low oil pressure, high engine temperature & low fuel level shutdowns.
• Acoustic weatherproof canopy.
• Lifting eye.
• Bunded fuel tank.
• Oil drain facility.
