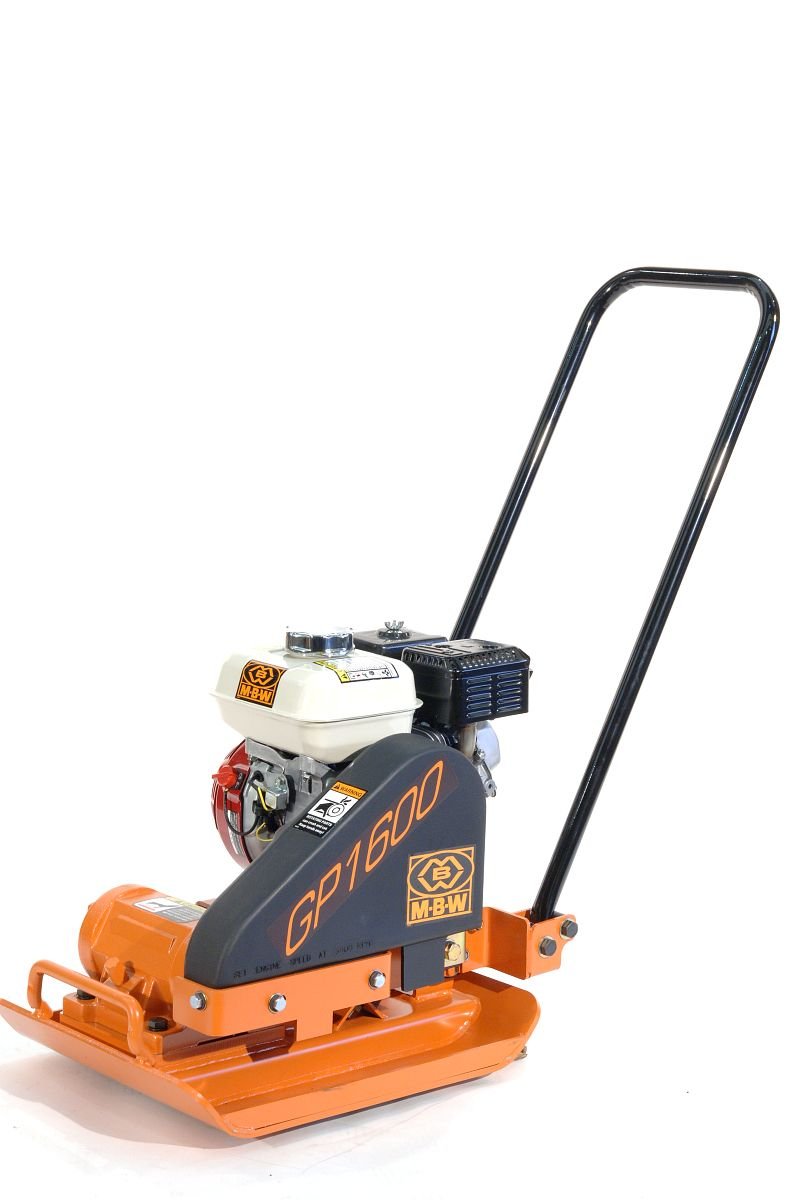

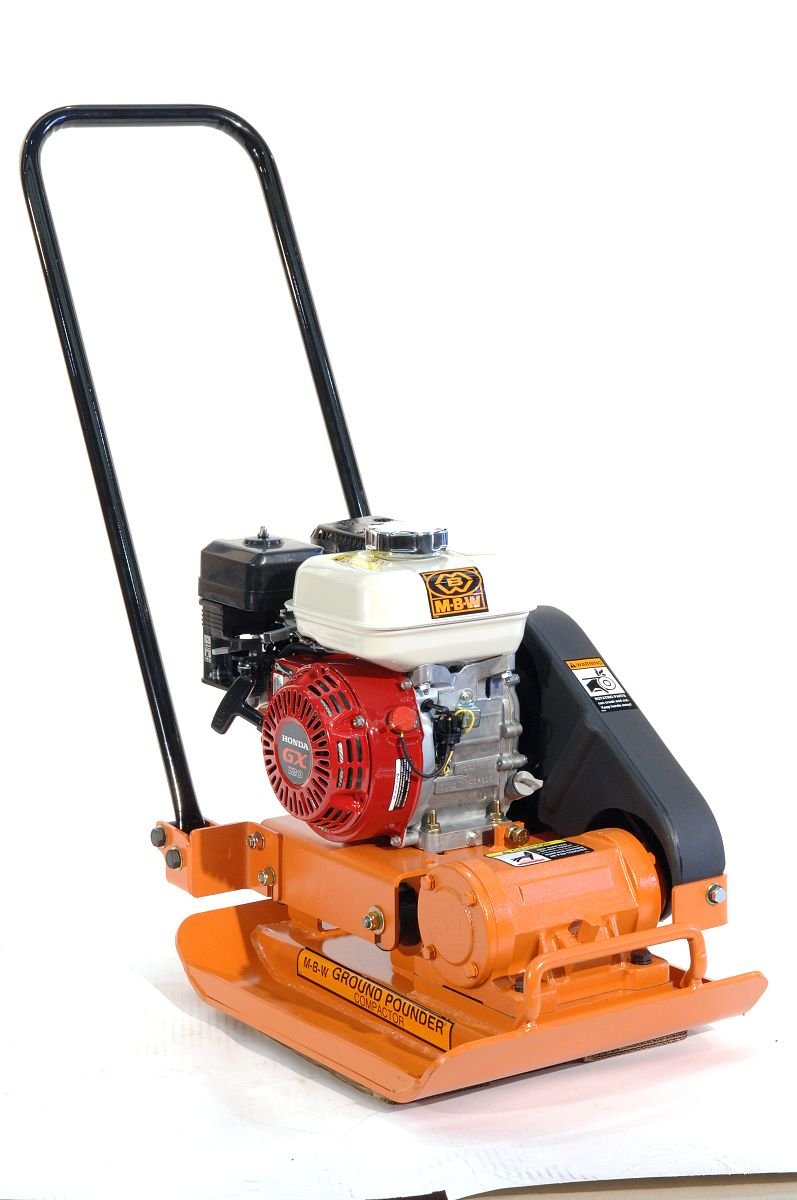

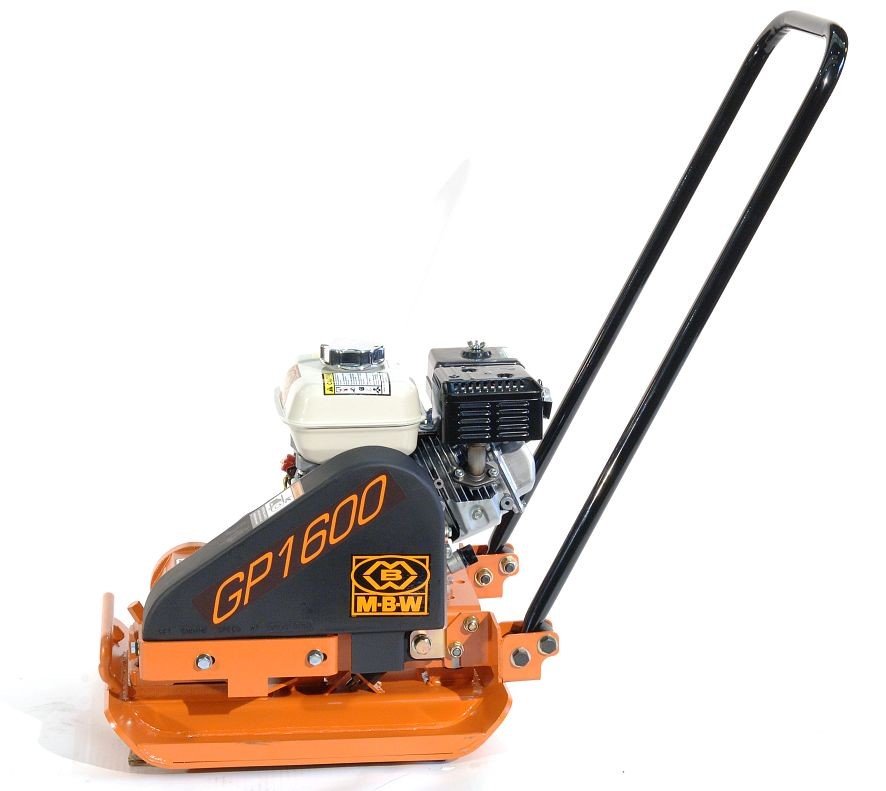

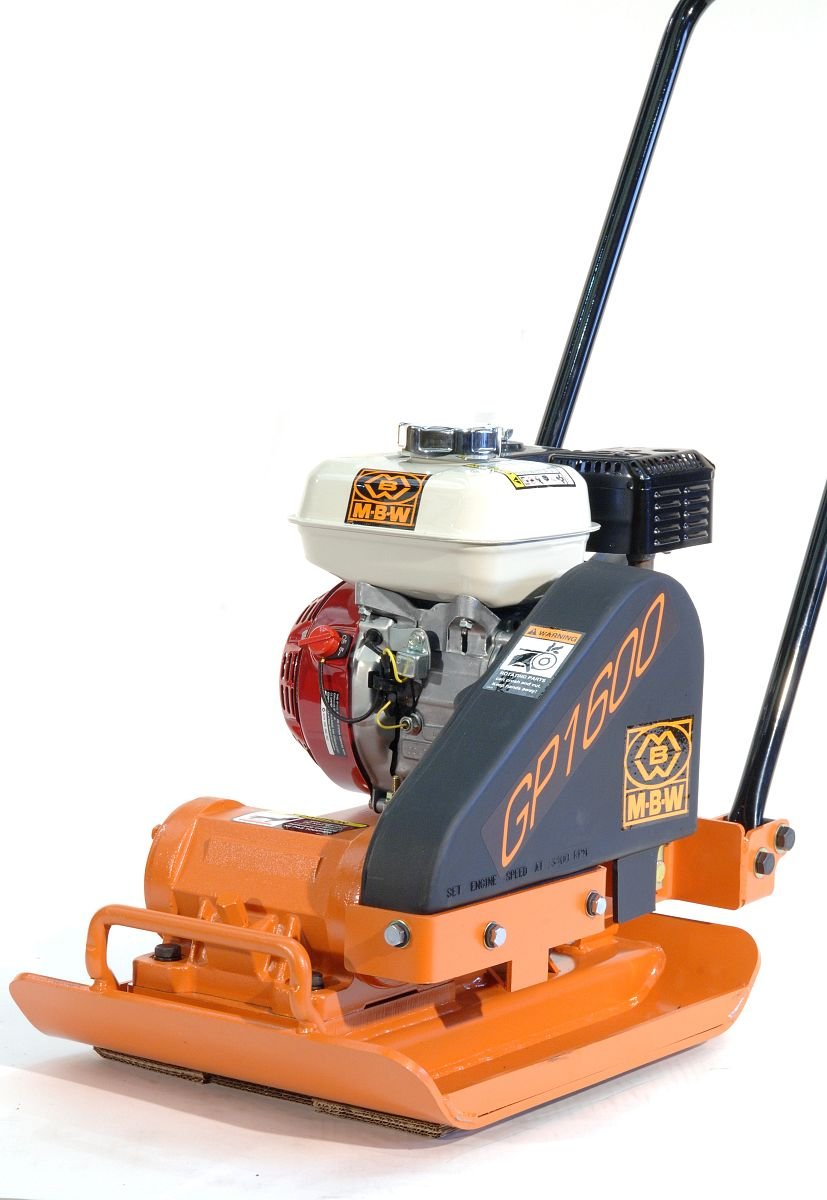

MBW GP1600 16" Honda GX160 Powered Plate Compactor

Specially designed to excel on asphalt / tarmac applications. The GP series of economical vibratory plates is portable and offers outstanding compaction performance thanks to it's Honda GX160 engine. This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter.

Weighing just 64Kg, the MBW GP1600 Honda powered Plate Compactor offers both value for money, and excellent build quality. MBW's advancements in vibratory plates have revolutionised the industry over the last 50 years. Each model offers a unique combination of frequency, centrifugal force, amplitude and mass that have doubled productivity, dramatically reduced maintenance and extended product life. With a Kilogram-force (kgf) of 1030 and travel speed of 25 metres per minute these plates are ideal in confined areas of granular soils including sands, bank run and gravels.

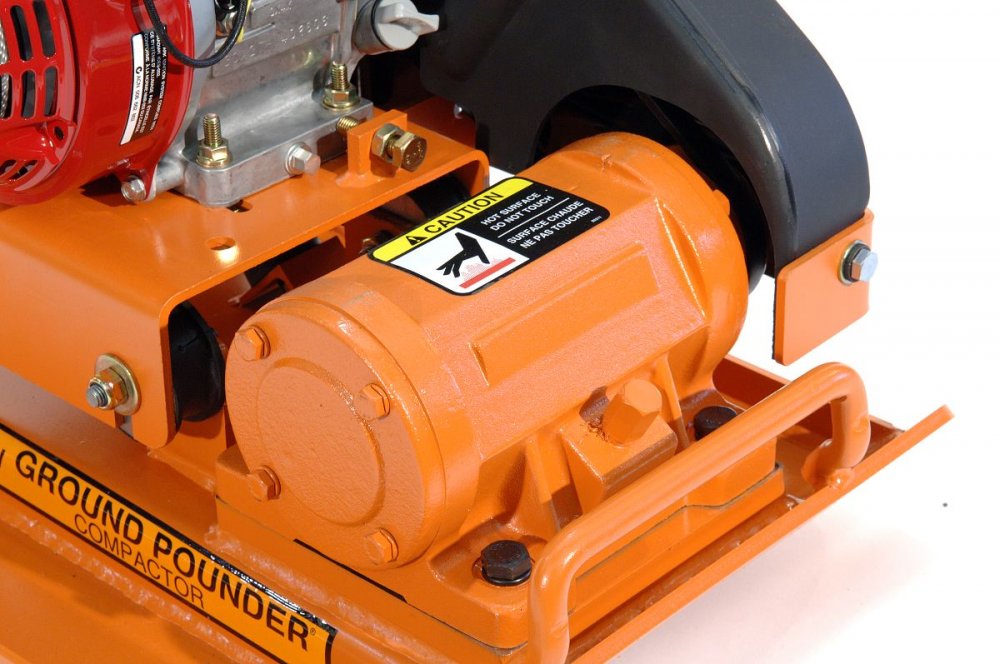

• Unsurpassed exciter quality including extra heavy duty housings, oversized application matched bearings, oil mist lubrication system and custom lubricants to withstand high operating temperature.
• Application matched quality shock mounts and isolated guide handles.
• Honda engine as standard.
• One piece exciter.
• Optional wheel and paving pads.
• Optional water kit

  Specification

  Weight	64 KG
  Plate Size	410 x 510mm / 16" x 20" inch
  Force	1030 KGF
  Speed	20-25 MTR/MIN
  Engine	HONDA GX160
