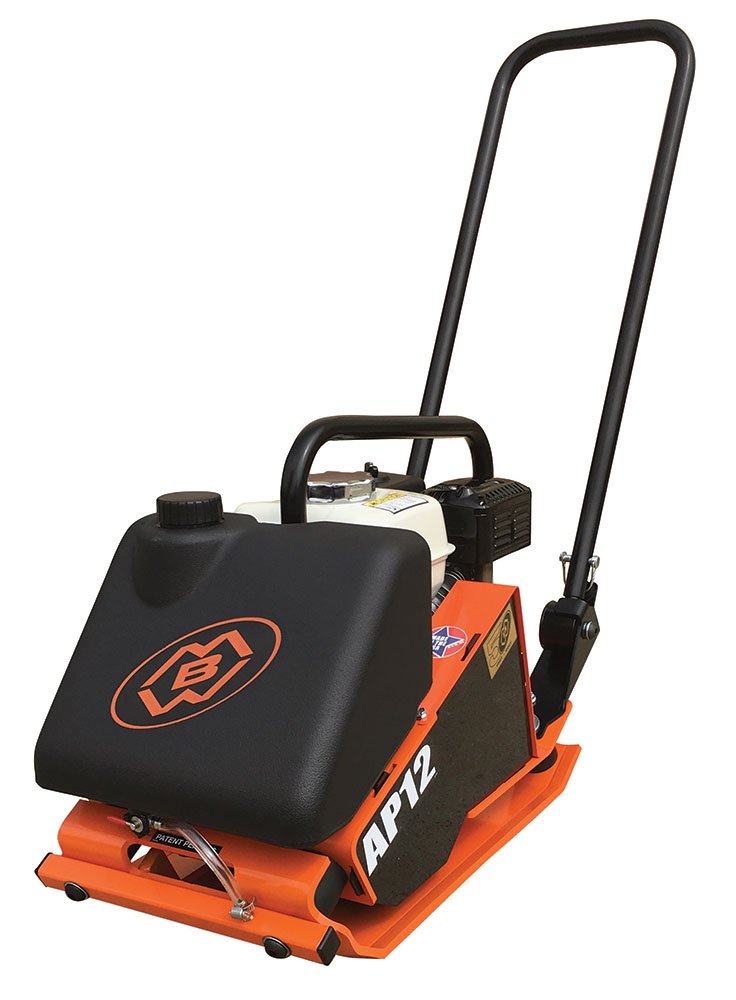

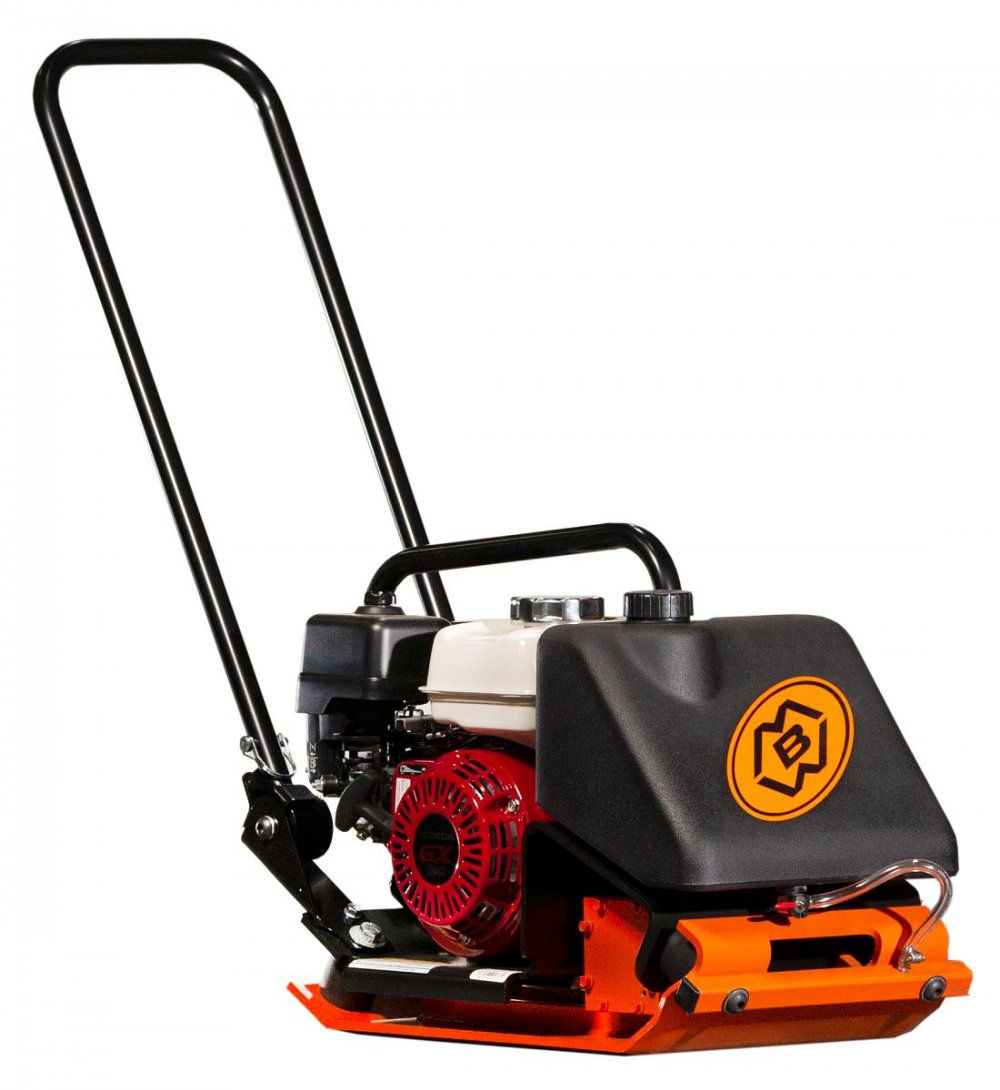

MBW AP12 12" Honda Powered Asphalt Plate Compactor With Water Sprayer

MBW AP series of plate compactors aren’t simply a standard plate compactor fitted with a water tank, they are specifically designed to excel on asphalt / tarmac applications. Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt applications.

This series of economical vibratory plates, the AP12 is portable, and offer outstanding compaction performance thanks to it's Honda GX120QX engine, a patent-pending suspension system that places shock mounts in a predominantly shear mode at the high amplitude front end of the plate, and a predominantly compressive mode at the low amplitude trailing end of the plate. This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter. With an amplitude of 1.47mm, centrifugal force up to 8.5KN and travel speed of 25 metres per minute these plates are ideal in confined areas of granular soils including sands, bank run, gravels and capable of achieving lift depths of up to 25cm (10 inches) .

These lightweight plates weighing 61kg are easy to lift and maneuver about the jobsite. Accompained by intense vibration this series of plates are ideally suited as an economical alternative for small to medium soil compaction applications.

• One piece exciter with self cleaning open base plate design.
• Made in the USA
• Optional lift cage available. Optional transport wheel kit available.
• Optional neoprene paving pad for placing interlocking paving stone / brick / block

  Specification

  Engine	Honda GX120QX (118 cm3)
  Plate Size W X L	33 x 57 cm / 13 x 22.5 in
  Amplitude	1.47 mm / 0.058 in
  Centrifugal Force	8.5 kN / 1920 lb
  Exciter Speed	5240 vpm
  Compaction Depth	Up to 10 in (25cm)
  Travel Speed	Up to 25M/Min / 83FT/Min
  Compaction Area	453 sqm/h / 4875 sqft/h
  Water Tank Capacity	8.7L / 2.3 gal
  Operating Weight	No Water: 61 kg / 134 lb Full Water: 69 kg / 152 lb
