Description

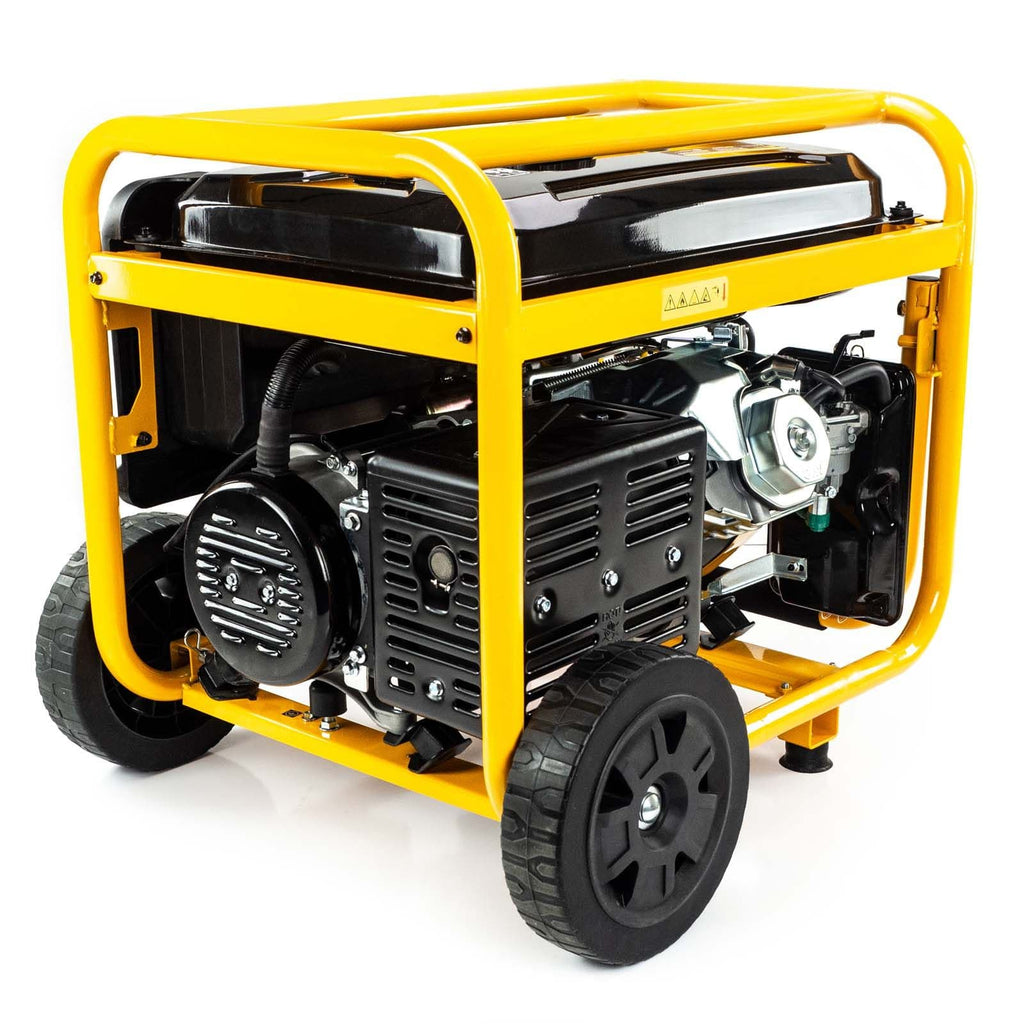

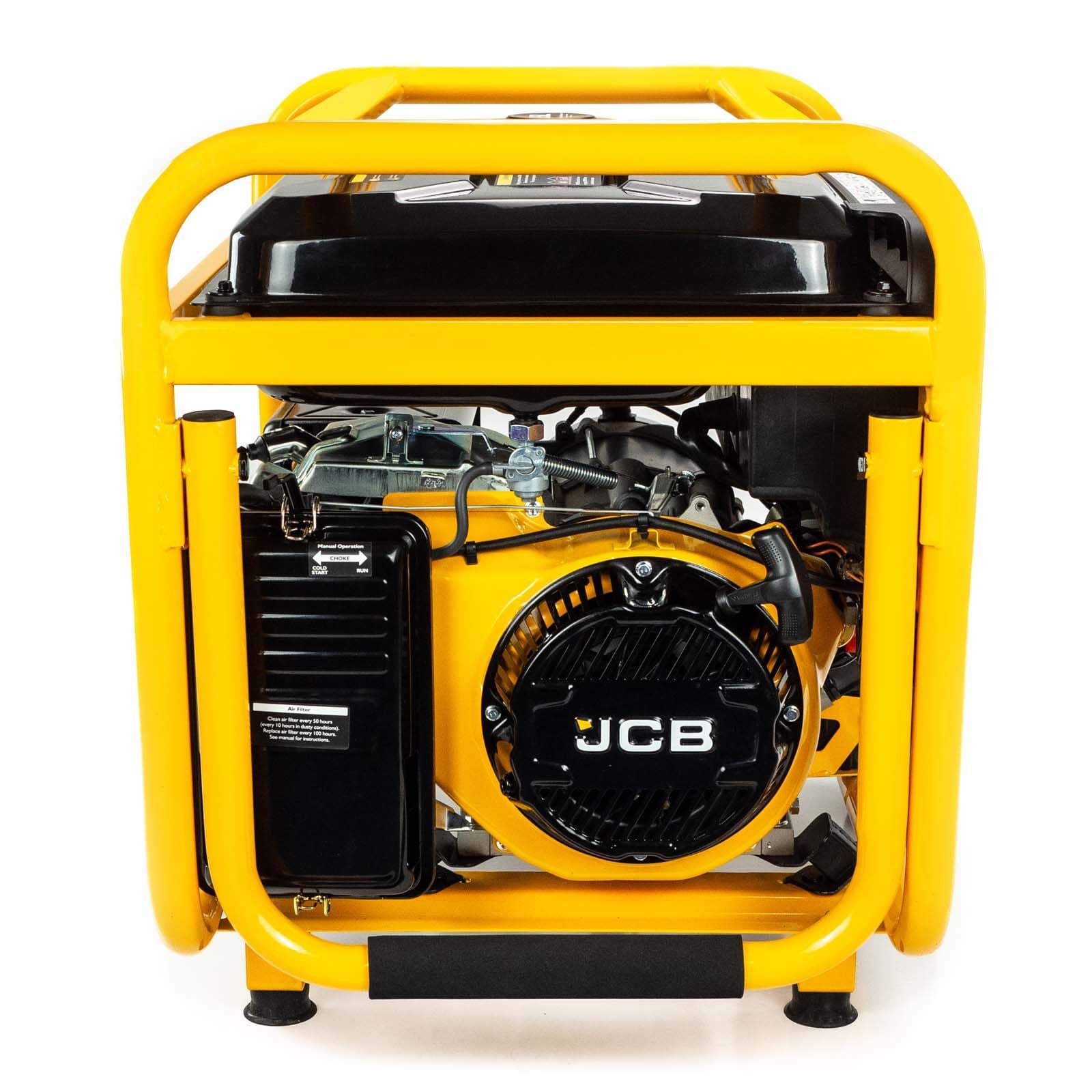

The JCB-G3800PE is a robust and high-performance 9.8kVA petrol generator designed to meet the demands of professional applications. Equipped with a market-leading 457cc 15hp JCB petrol engine with an output of 7.9kW / 9.8kVA* at peak capacity. Its sturdy construction ensures reliable power generation for building and construction sites, mobile workshops, farms, and beyond.
Key Features:
- Powered by a 457cc 15p JCB petrol engine.
- Max output of 7.9kW / 9.8kVA, continuous output of 7.5kW / 9.4kVA.
- Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
- Built-in overload protection prevents damage to the alternator during operation.

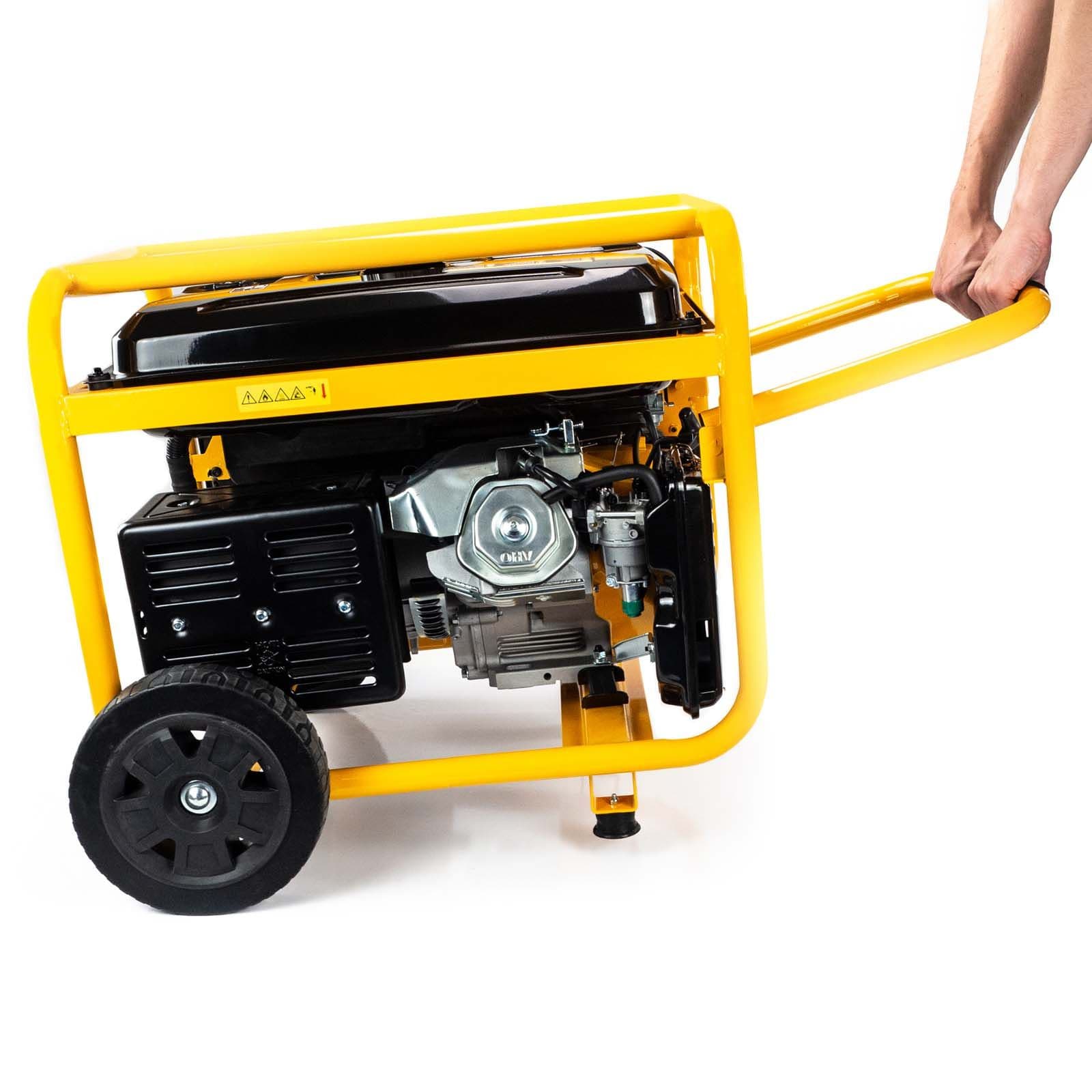

- Mounted on puncture-proof tires and encased in a robust 32mm tubular steel full frame design.

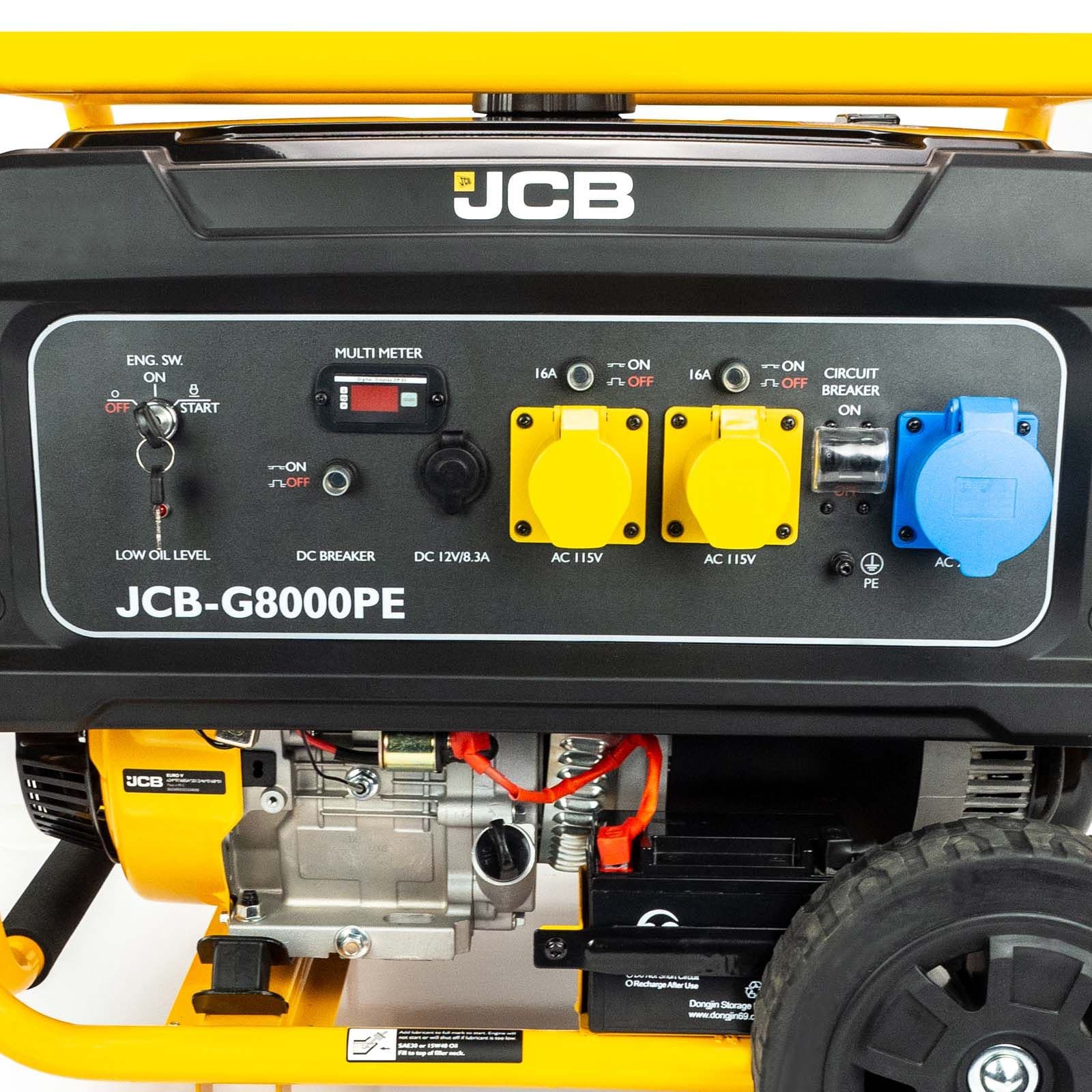

- Equipped with a 230V/32A (Blue) socket, 2x 115V/16A (Yellow) socket and 1x 12V DC 8.3A auxiliary power outlet.
- Heavy-duty recoil pull start and electric start.
- Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
- Run time of over 8 hours at 50% load with its 25-litre fuel tank.
- Net Weight 94kg.
- Backed by a comprehensive 3-year warranty (1 year Commercial)*
3 Year Long-term Warranty:
For your peace of mind, the JCB-G38000PE comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your generators remain in excellent condition for years to come.
In the Box: JCB Tools JCB-G3800PE Generator, Wheel Kit, User Manual.
Full Specification:
| Model | JCB-G8000PE |
|---|---|
| Start Method | Recoil/E-Start |
| Maximum Output (kVA) | 9.8 |
| Continuous Output (kVA) | 9.4 |
| Maximum Output (kW) | 7.9 |
| Continuous Output (kW) | 7.5 |
| Run Time @ 50% load (hours) | 8 |
| Fuel Consumption @ 100% load (L/Hr) | 5 |
| Fuel Consumption @ 50% load (L/Hr) | 3.12 |
| Fuel | Petrol |
| Fuel Capacity (L) | 25 |
| Alternator Type | AVR |
| Phase | Single Phase |
| Power Factor (Cosφ) | 1 |
| Voltage | 115V / 230V |
| Connection Method(s) | Sockets - 1x 230V/32A, 2x 115V/16A |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 34.3 / 23.6 |
| Engine Model | JCB-EG460PE |
| Engine Type | Petrol single cylinder |
| Rated Speed (RPM) | 3000 |
| Engine Size (cc) | 457 |
| Engine Power (hp) | 15 |
| Engine Oil Type | 10w-30 / SAAE 15w40 |
| Engine Oil Capacity (ml) | 1100 |
| Low Oil Level Shutdown | Yes |
| Features | Overload Protection |
| Casing | 32mm Thick Open Frame |
| Frame Diameter (mm) | 32 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Noise Level @ 1m 75% load (dB) | 97 |
| Wheel Kit? | Yes |
| Gross Weight (kg) | 99 |
| Net Weight (kg) | 94 |
| Fully Assembled Dimensions (L x W x H) (mm) | 720×700×650 (handle protracted) 1065×700×650 (handle extended) |
| Package Dimensions (L x W x H) (mm) | 815×595×605 |
| Fuel/Power Source | Petrol |
| Product Type | Petrol Generator |
| Warranty (terms apply) [years] | 3 |
| Model EAN | 5059608313062 |
| Assembly Required? | Yes - some assembly may be required |
