Description

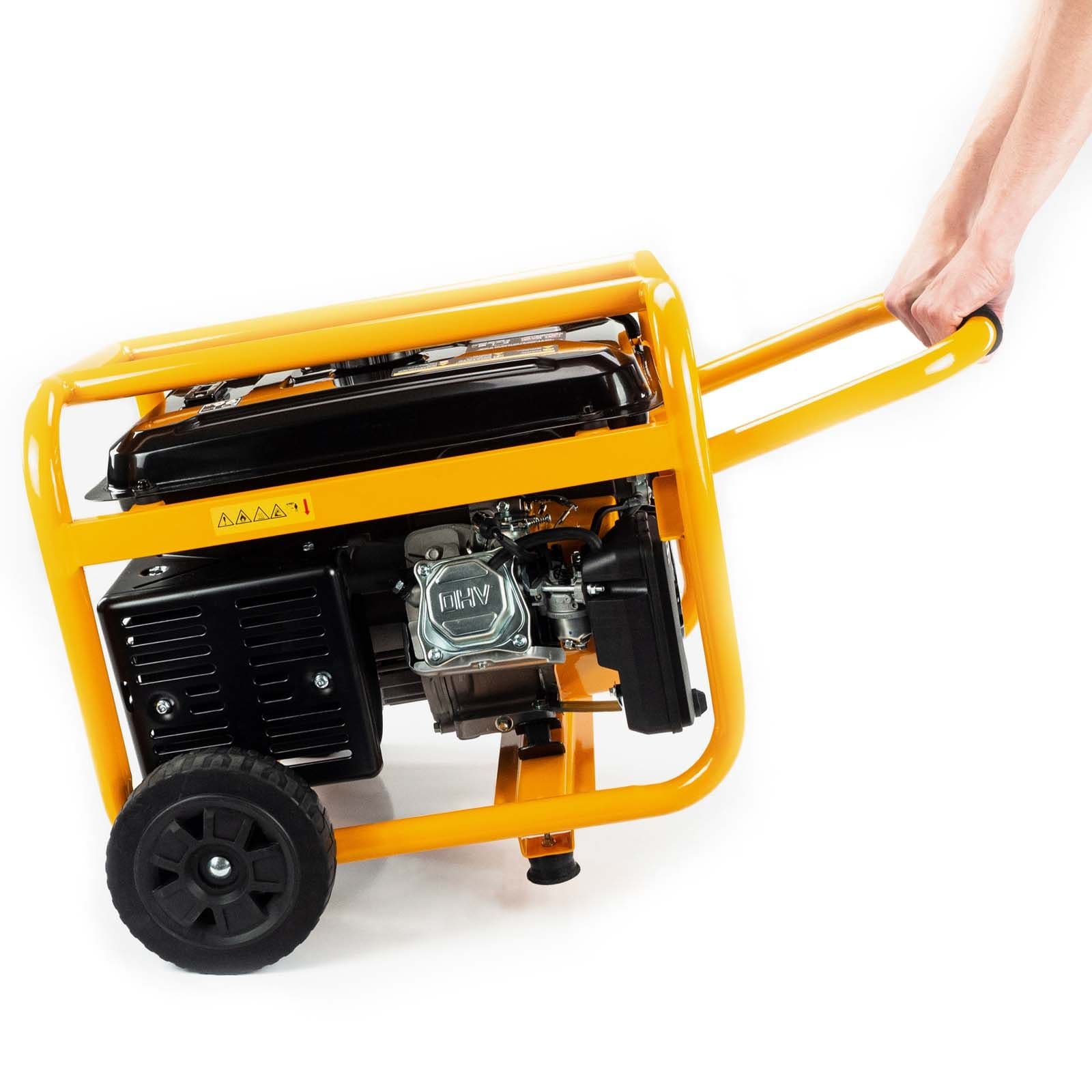

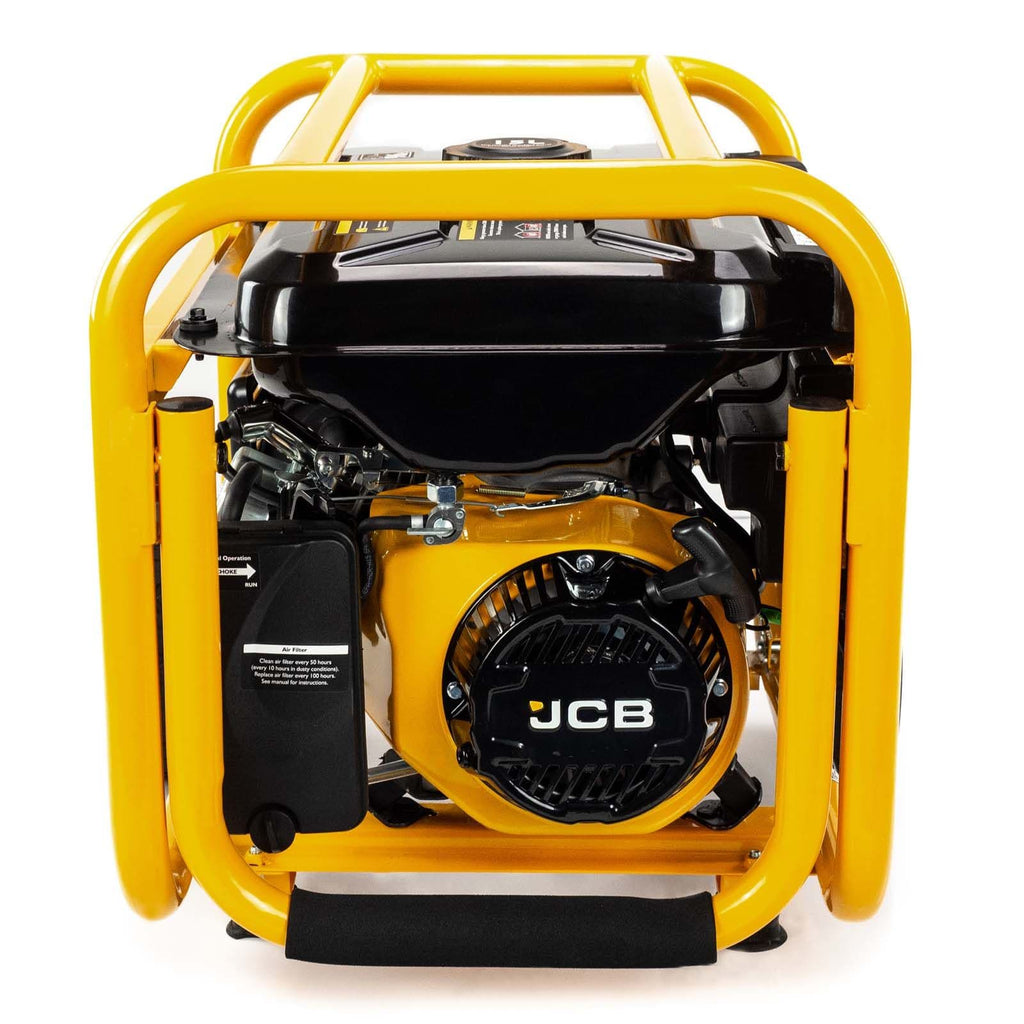

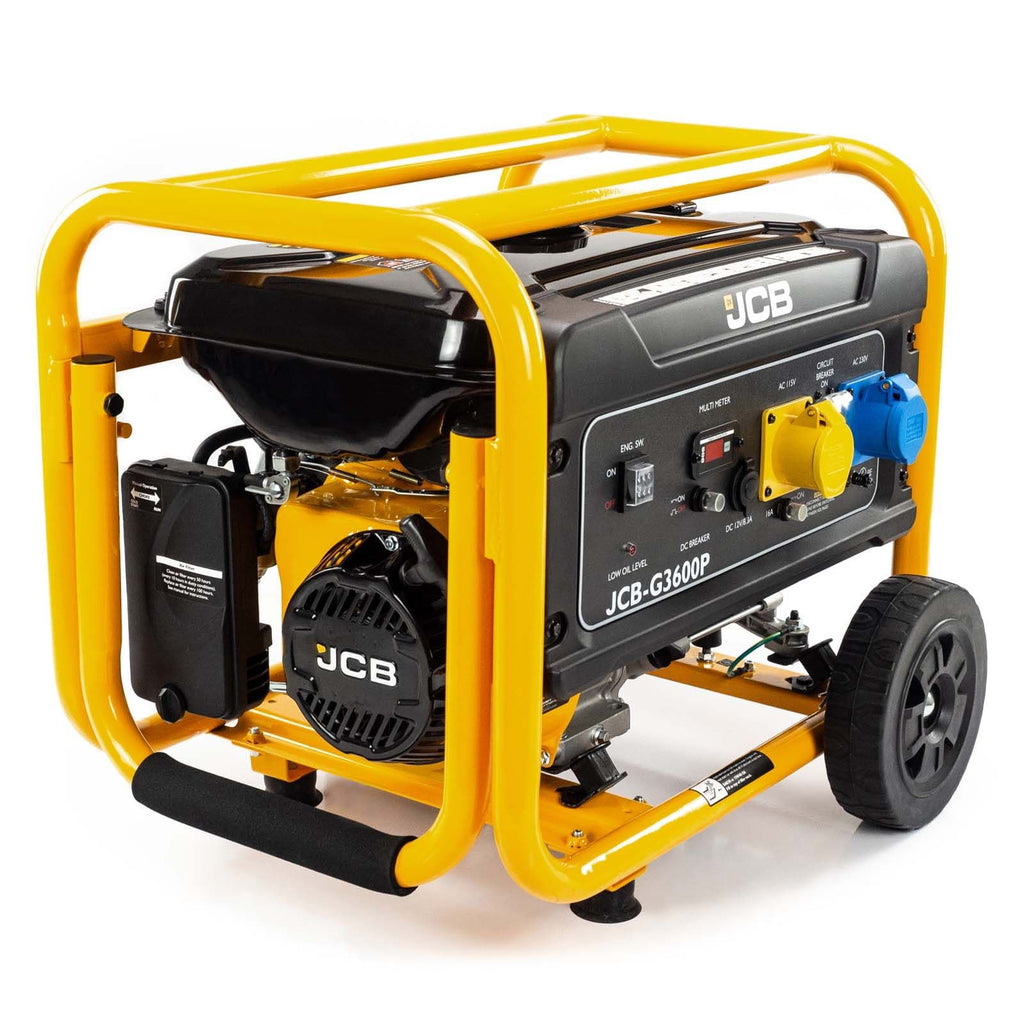

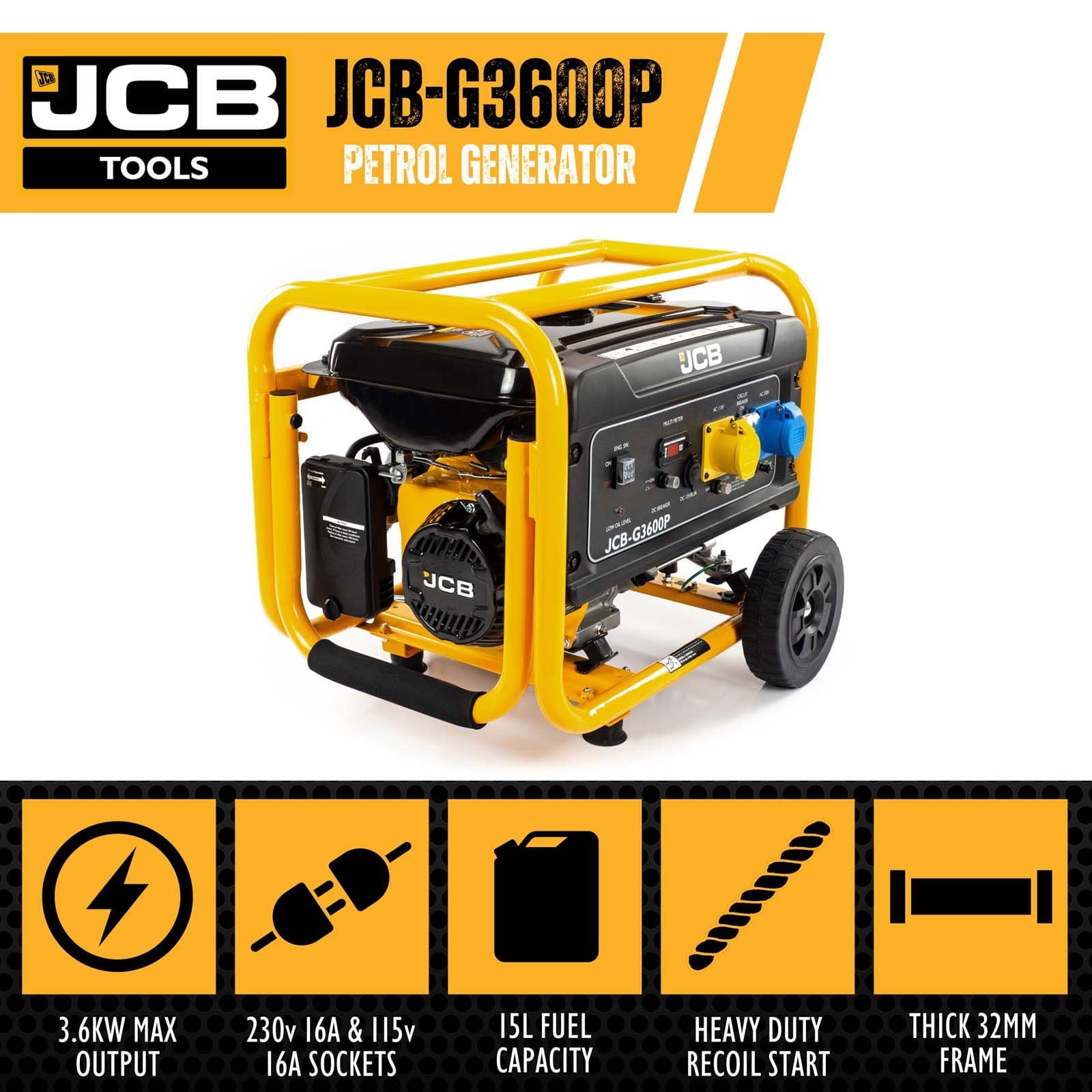

The JCB-G3600P is a robust and high-performance 4.5kVA petrol generator designed to meet the demands of professional applications. Equipped with a market-leading 224cc 7.5hp JCB petrol engine with an output of 3.6kW / 4.5kVA* at peak capacity. Its sturdy construction ensures reliable power generation for building and construction sites, mobile workshops, farms, and beyond!
Key Features:
- Powered by a 224cc 7.5hp JCB petrol engine.
- Max output of 3.6kW / 4.5kVA*, continuous output of 3.3kW / 4kVA
- Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
- Built-in overload protection prevents damage to the alternator during operation.

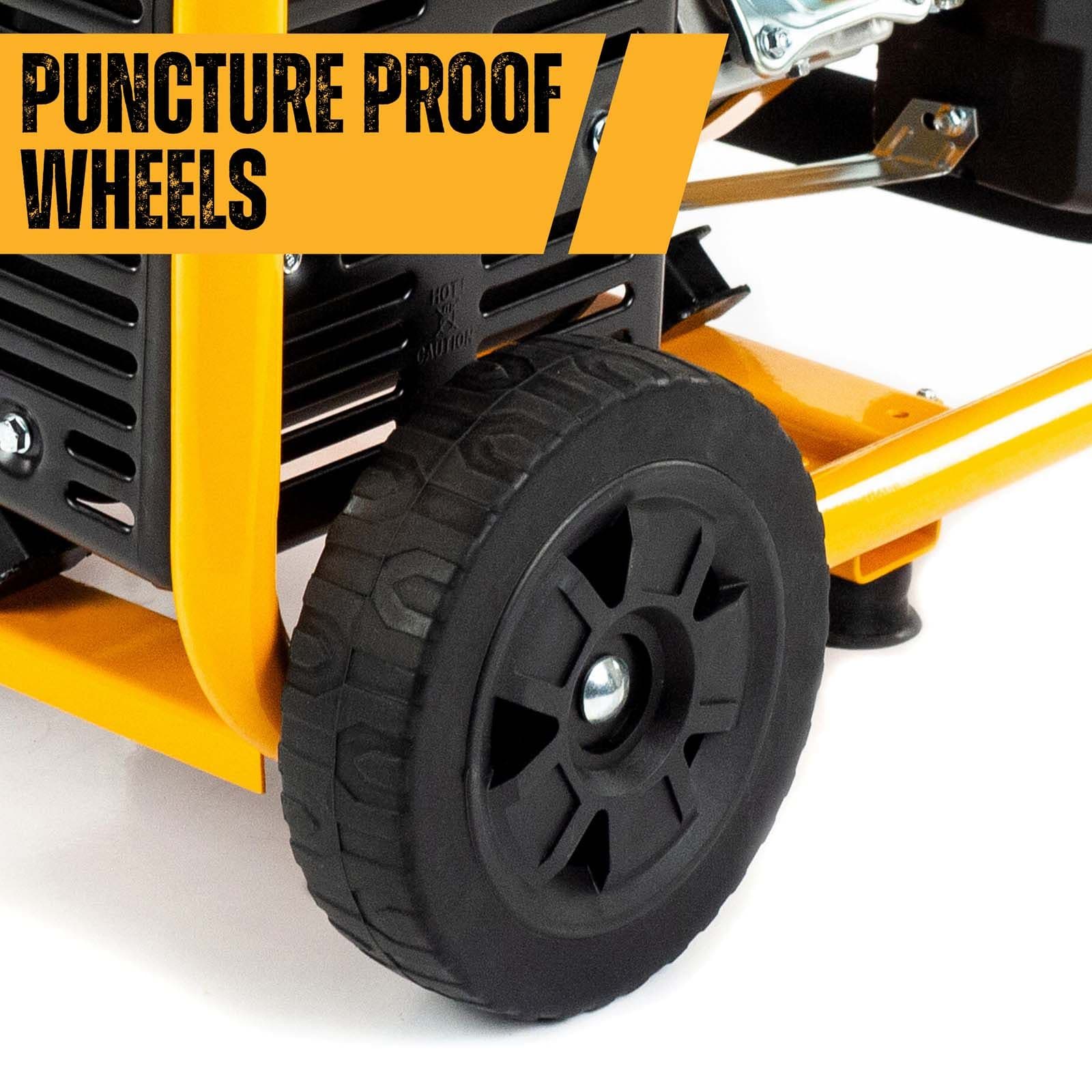

- Mounted on puncture-proof tires and encased in a robust 32mm tubular steel full frame design.
- Equipped with a 230v / 16A (Blue) socket and a 115v / 16A (Yellow) socket, as well as a 12v DC 8.3A auxiliary power outlet.
- Heavy-duty recoil pull start
- Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
- Run time of over 13 hours at 50% load with its 15-litre fuel tank.
- Net Weight 50kg
- Backed by a comprehensive 3-year warranty (1 year Commercial)*
- Heavy Duty Generator Features
3 Year Long-term Warranty:
For your peace of mind, the JCB-G3600P comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your generators remain in excellent condition for years to come.
In the Box: JCB Tools JCB-G3600P Generator, User Manual.
Full Specification:
| Model | JCB-G3600P |
|---|---|
| Start Method | Recoil |
| Maximum Output kVA | 4.5 |
| Maximum Output (kW) | 3.6 |
| Continuous Output (kW) | 3.2 |
| Run Time @ 50% load (hours) | 13 |
| Fuel Consumption @ 100% load (L/Hr) | 2 |
| Fuel Consumption @ 50% load (L/Hr) | 1.15 |
| Alternator Type | AVR |
| Phase | Single Phase |
| Voltage | 115V / 230V |
| Connection Method(s) | 230V / 16A, 115V / 16A |
| Rated Speed (RPM) | 3000 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 15.6 / 13.9 |
| Engine Model | JCB-EG225P |
| Engine Type | Petrol single cylinder |
| Engine Size (cc) | 224 |
| Engine Power (hp) | 7.5 |
| Fuel | Petrol |
| Fuel Capacity (L) | 15 |
| Engine Oil Type | 10w-30 / SAE 15w40 |
| Engine Oil Capacity (ml) | 600 |
| Low Oil Level Shutdown | Yes |
| Features | Overload Protection |
| Casing | 32mm Thick Open Frame |
| Frame Diameter (mm) | 33 |
| Noise Level db (A) @ 7m | 70 |
| Noise Level db (A) | 97 |
| Wheel Kit? | 54 |
| Gross Weight (kg) | 51 |
| Net Weight (kg) | 50 |
| Fully Assembled Dimensions (H x W x L) (mm) | 540 x 580 x 610 |
| Package Dimensions (H x W x L) (mm) | 515 x 520 x 685 |
| Fuel/Power Source | Petrol |
| Product Type | Petrol Generator |
| Home Use Warranty (years) | 3 |
| Model EAN | 5059608313055 |
| Assembly Required? | Yes - some assembly may be required |
