Description
FEATURES
- Large 457cc horizontal 25.4mm 1'' shaft petrol engine: Produces 15hp for industrial applications
- Suitable for a range of products: Use in most pressure washers, water pumps, tillers, compactor plates, wood chippers, Karts* and more
- Simple-to-start engine: Easy recoil pull start with heavy-duty braid
- Easy to fit: Will retrofit most major and common brands ranging from 160cc to 220cc mounting)
- Reliable 4-stroke Engine
- Large 6.5L fuel tank

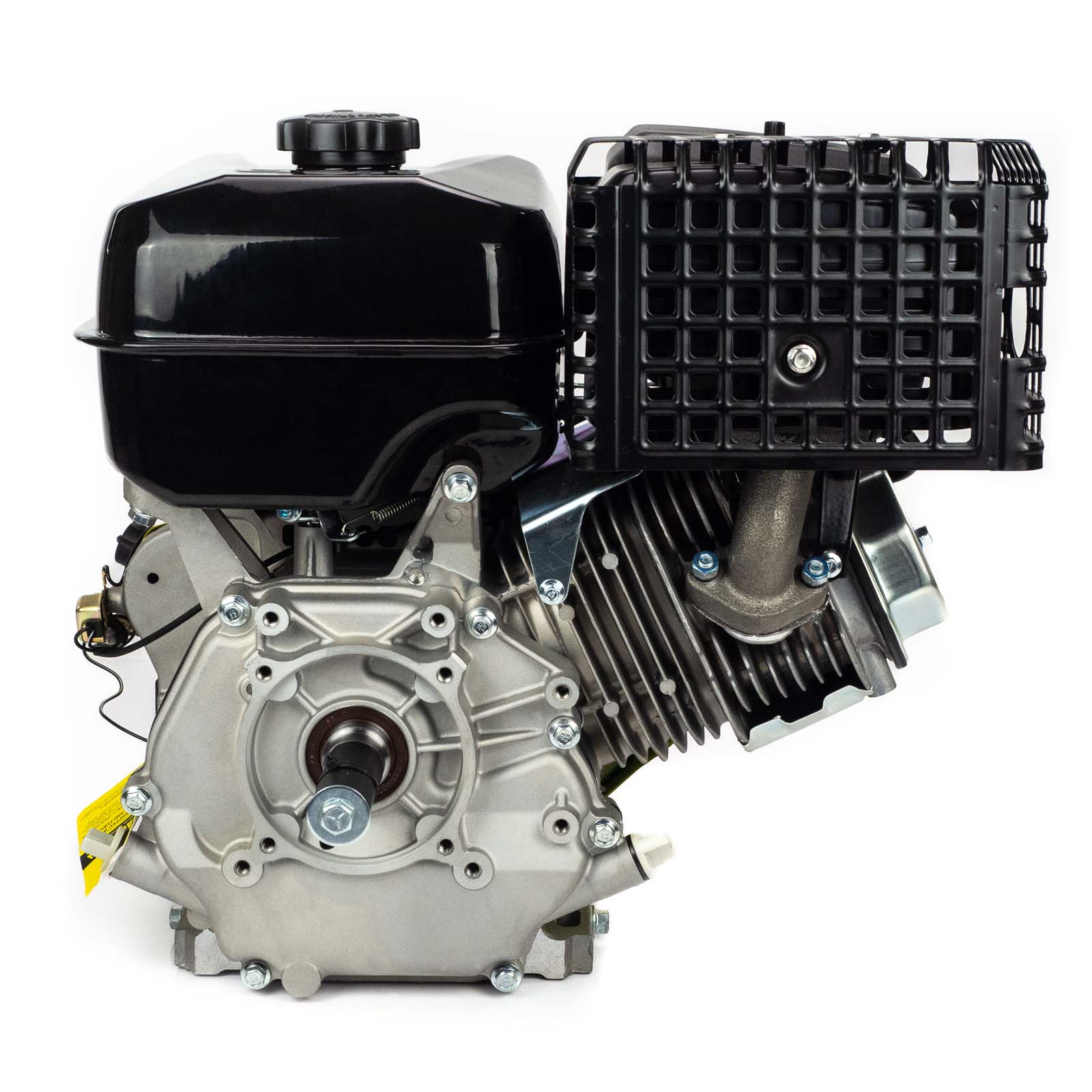

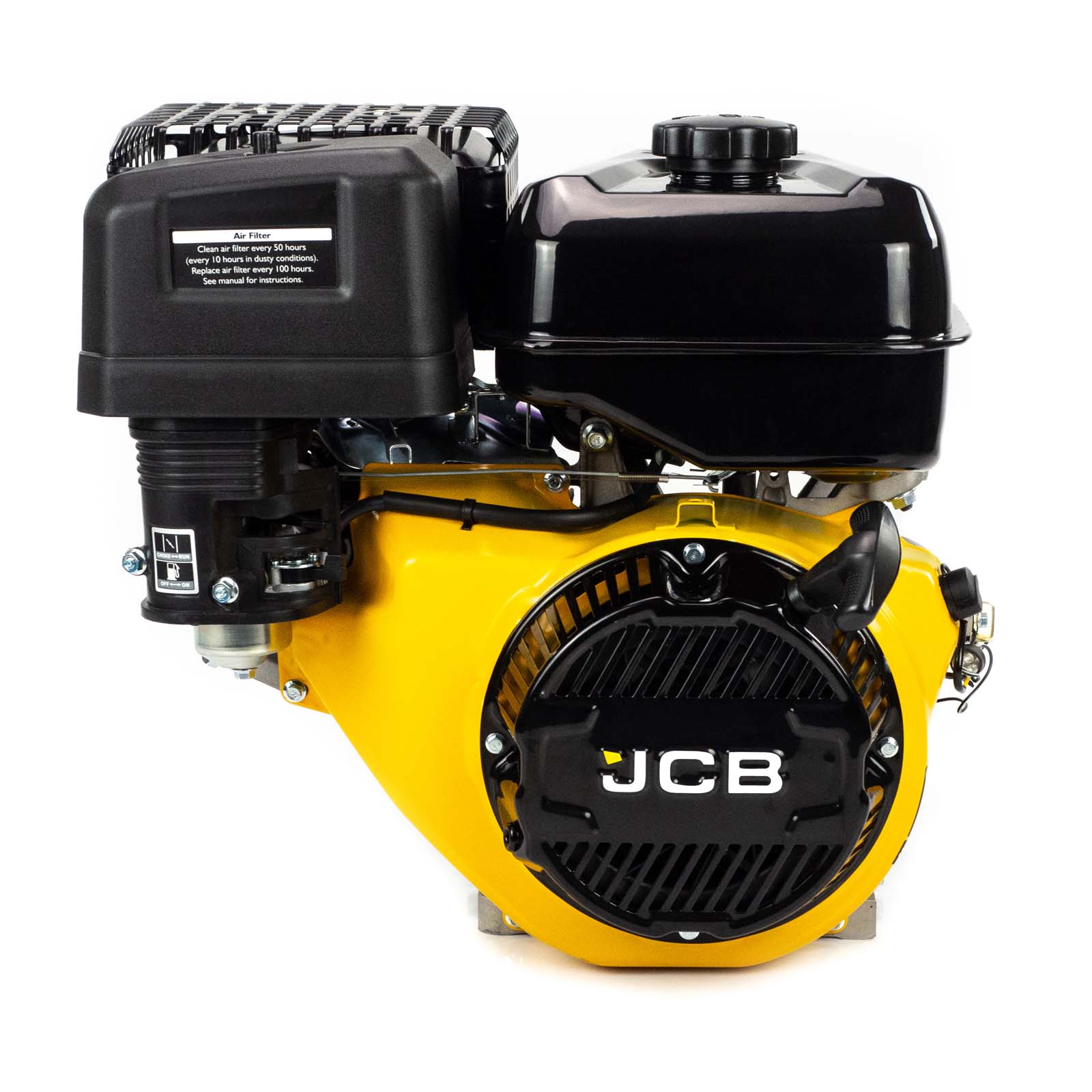

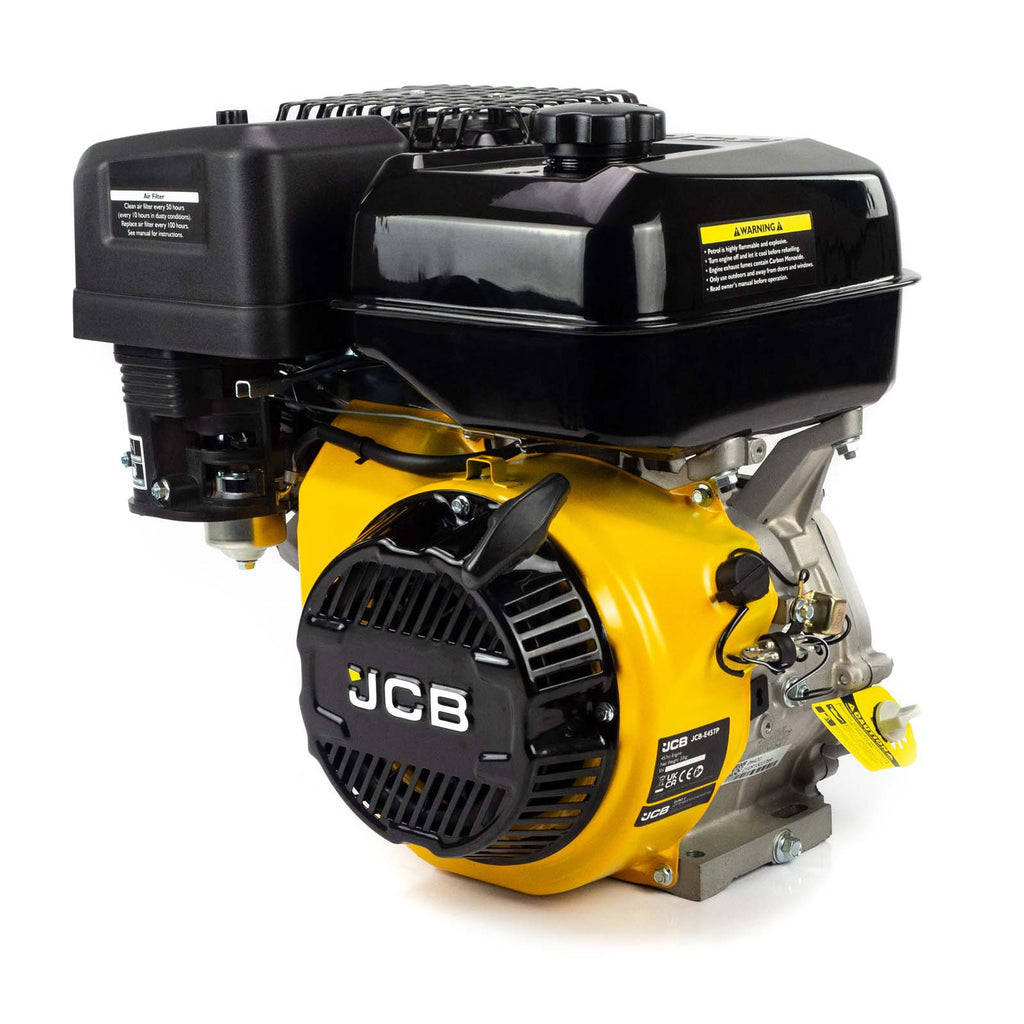

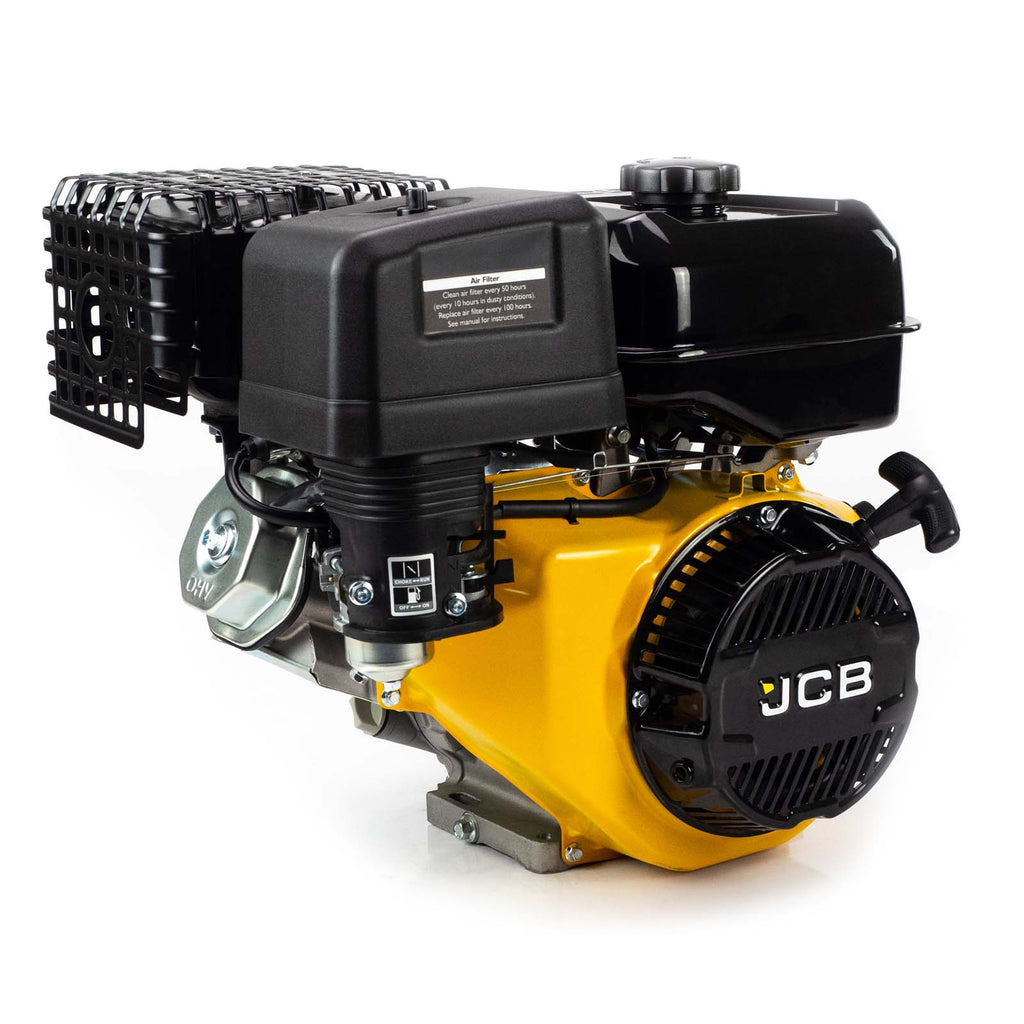

The JCB-E460P replacement engine is a 457cc 15hp horizontal straight shaft petrol engine. 25.4mm shaft (1 inch), with keyway compatible for various applications including commercial, heavy-duty home use or industrial pressure washers, wood chippers, water pumps, tillers, grinders, compaction plates, other heavy-duty machinery or even used with karts (subject to small adjustments). The engine’s easy recoil pull-start is aided by reliable CDI ignition for consistent and easy starting.
The impressive design allows market leading 15hp of max power using a design which will retrofit all common and major brands engines as a direct replacement, ranging from 360cc to 470cc models. The engine is a reliable OHV design, offering a balance of compactness, higher torque, and an easily serviceable layout to maintain your engine over future years.
Key Features
- Large 457cc horizontal 25.4mm 1”shaft petrol engine: Produces 15hp for industrial applications
- Suitable for a range of products: Use in most pressure washers, water pumps, tillers, compactor plates, wood chippers, Karts* and more
- Simple-to-start engine: Easy recoil pull start with heavy-duty braid
- Reliable 4-stroke Engine
- Large 6.5L fuel tank
- Easy to fit: Will retrofit most major and common brands ranging from 160cc to 220cc mounting)
3 Year Warranty (Terms Apply)
In the Box:
- JCB 457cc 15hp Recoil Start Engine
- Instruction Manual
- Spark plug
- Wrench
| Model | JCB-E460P |
|---|---|
| Start Method | Recoil |
| Shaft Type | Straight Horizontal Shaft, with Keyway |
| Shaft Dimensions (mm) | 25.4 |
| Fuel / Power Source | Petrol |
| Fuel Capacity (L) | 6.5 |
| Impeller Type | PP |
| Engine Oil | SAE30 / 15W40 |
| Engine Oil Capacity (ml) | 1100 |
| Low Oil Shutdown | Yes |
| Run Time @ 50% Load (hr) | 3 |
| Engine Model | JCB-E460P |
| Engine Type | OHV |
| Engine Size (cc) | 457 |
| Ignition System | CDI |
| Bore x Stroke (mm) | 92 x 69 |
| Power (hp) | 15 |
| Speed (RPM) | 3600 |
| Gross Weight (kg) | 35 |
| Net Weight (kg) | 23 |
| Product Dimensions (H x W x L) (mm) | 460 x 420 x 480 |
| Package Dimensions (H x W x L) (mm) | 480 x 450 x 55 |
| Product Type | Petrol Engine |
| Model EAN | 5059608313024 |
| In The Box | JCB 457cc 15HP Recoil Start Engine, Instruction Manual, Spark plug wrench |
| Warranty (Years) | 3 |
