Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Petrol Generator

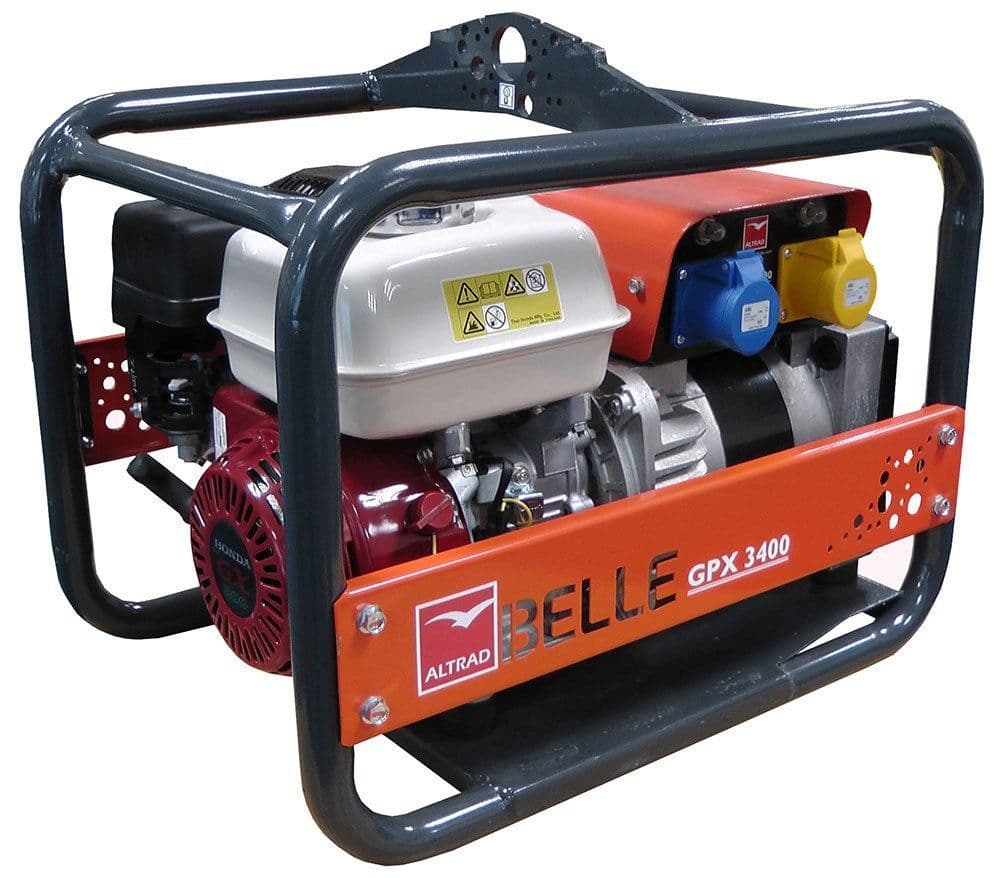

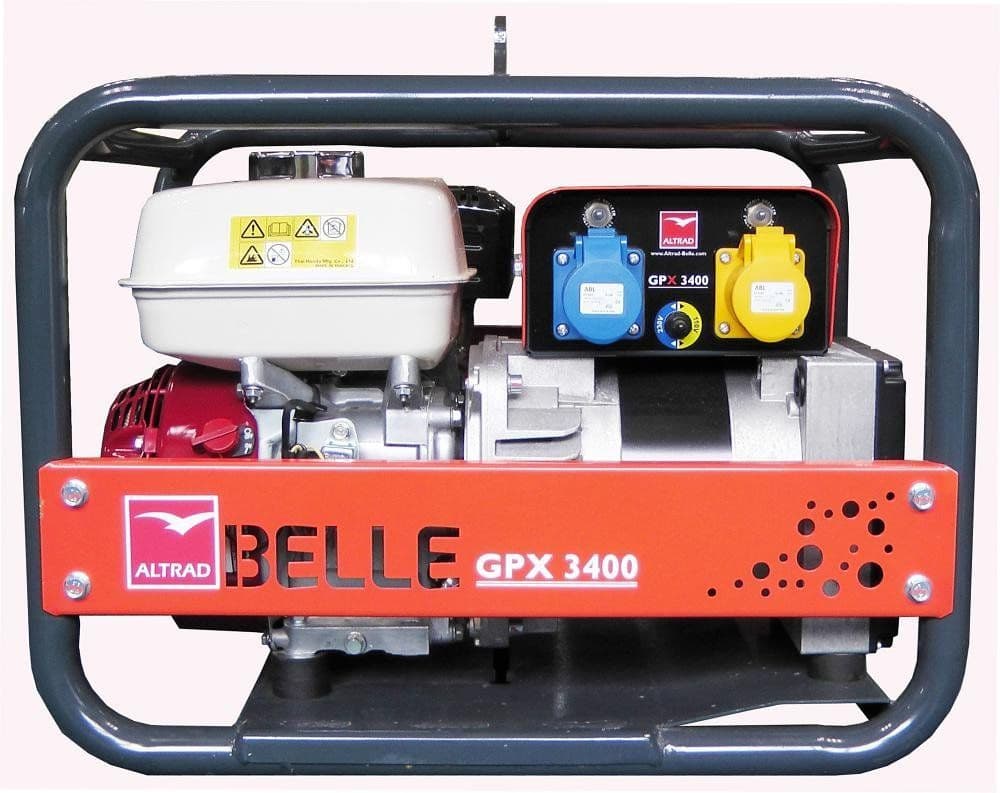

This 3.4va / 2.7kw (2.5kw continuous) generator from Belle is powered by a Honda GX200 petrol engine and is stackable. It has 1 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets. The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

• Robust large diameter frame with built-in Engine / Alternator.
• Protection belly plate to aid use on soft ground.
• Professional Honda engine with recoil start.
• Low engine oil cut-off.
• High quality, heavy-duty NSM Alternator.

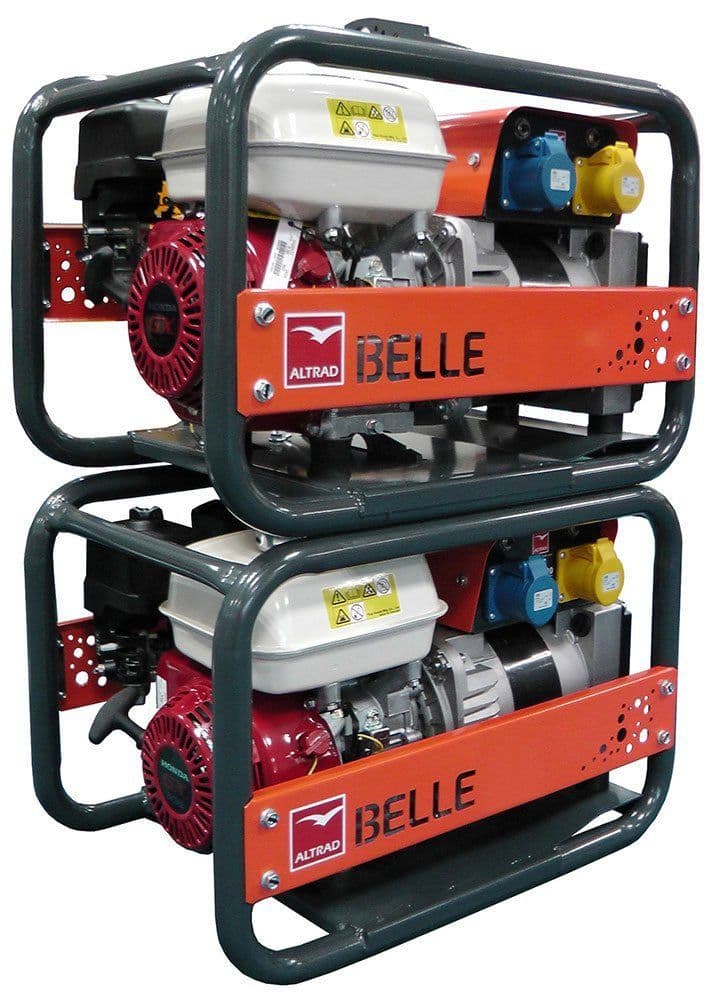

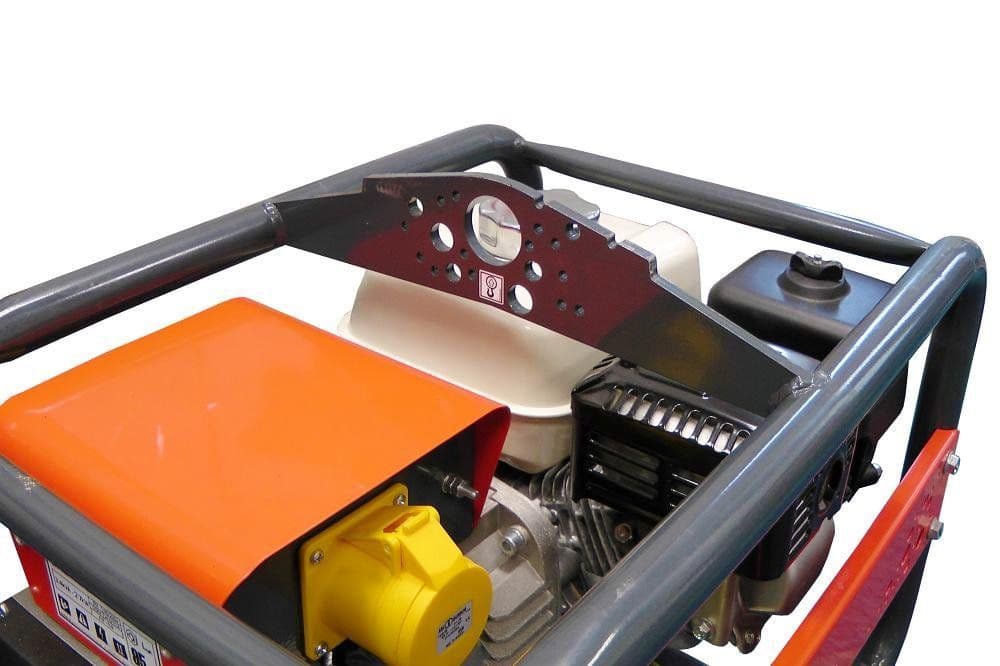

• Stackable frame ('Patent Pending') with single point lifting to reduce enviromental impact and minimize manual handling risk. Complete with securing pin for added safety.
• Engine / Alternator side impact protection.
• Durable screw-in sockets.
• Metal covered fuse box.
• Over-sized 4-point Anti-Vibration mounts.
• Rental-proof, robust, steel electrical enclosure.

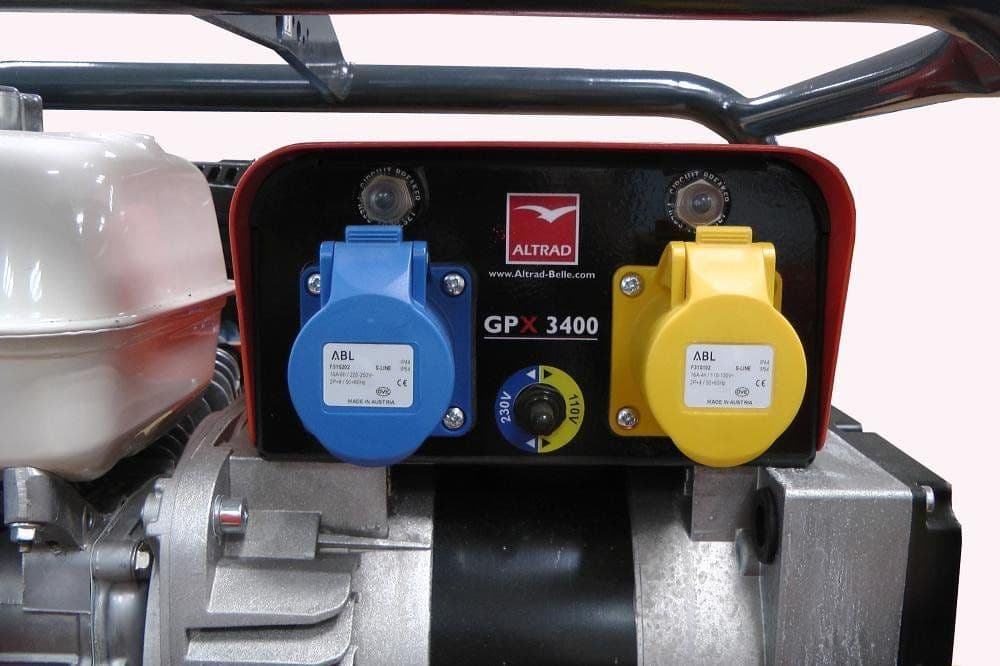

• Selectable 110v (16A and 32A or 230v.
• System breakers for 110v & 230v supplies.
• Specifically designed for hire and rental markets.
• Accessible service points.

• Fuel Capacity: 3.1L
• Engine Power: @ 3000rpm 4.3hp / 3.3kw
• Rating: @ 0.8 p/f 3.4kVA
• PRP Rating: 2.7kw
• COP Rating: (Continuous) 2.5kw
• No of sockets: 110v 16a x 1, 110v 32A and 230v 16a x 1
• Frequency: 50Hz
• Alternator: NSM K100 Range
• Maximum Current: @ 110v 24.50
• Maximum Current: @ 230V 11.70
• Running hours at: @ 90% of COP 2.3Hrs
• Sound Power Level: LWA 95
• Dimensions: Width x Height x Length 432mm x 515mm x 618mm
• Weight: 47kg
