Description

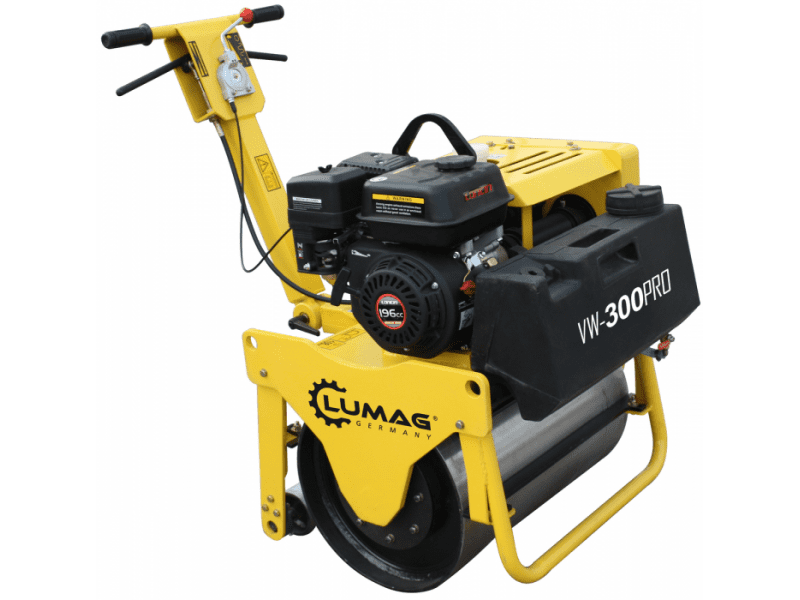

The vibratory roller VW-300PRO is suitable for small compaction tasks, for example in road construction, gardening and landscaping, paving or small repairs in road construction.
Equipment Features:
- Infinitely variable hydrostatic drive: forward 0-2.1 km / h, backward 0-1.4 km / h
- Low lateral projection allows optimal compaction up to walls or curbs
- Scrapers front and rear
- Robust protective frame with central locking Point suspension
- Safety supports front and rear
- The guide drawbar can be vertically positioned for transport
- The overhead water tank ensures constant irrigation for black cover work
Full Specification:
| Motor / Drive | 1-cylinder 4-stroke OHV LONCIN G200F engine f. unleaded gasoline |
| Engine Power | 4.0 kW at 3,600 rpm |
| Capacity | 196 cm³ |
| Fuel Tank | 3.6 l |
| Engine Oil | 0.6 l |
| Start System | recoil |
| Power Unit | mechanically |
| Working Width | 600 mm |
| Driving Speed Forward / Backward | Max. 2.1 / max. 1.4 km / h |
| Climbing Ability, Max. | 20% |
| Travel Drive | hydrostatically |
| Exciter System Drive Type | mechanically |
| Frequency | 72 Hz |
| Amplitude | 0.6 mm |
| Centrifugal | 13.5 kN |
| Water Tank | 16 l |
| Oil Tank | 50 ml (CF-4 20W / 50) |
| Sound Power Level LWA | 108 dB (A) |
| Static Line Load | 4.4 kg / cm |
| Operating Weight | about 266 kg |
| Transport Weight (net / gross) | about 262/312 kg |
| Packaging Dimensions (LxWxH) | 870 x 770 x 1220 mm |
