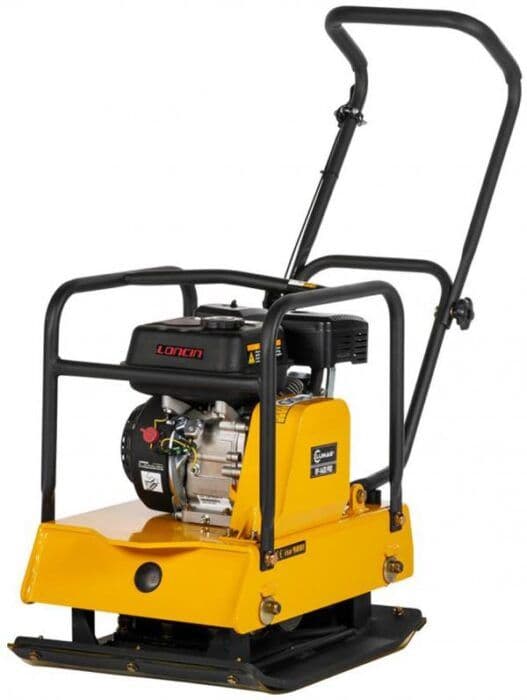

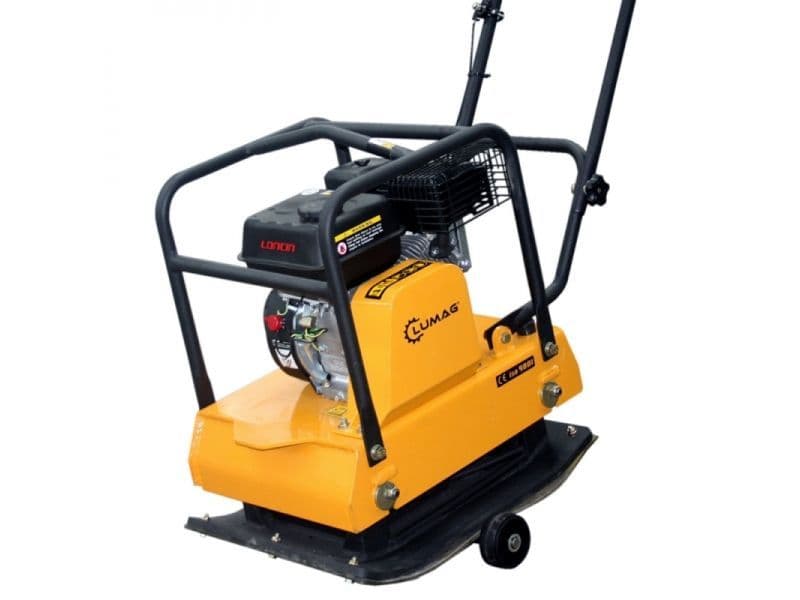

Lumag RP1400PRO 20KN Petrol Compactor Plate

The Lumag RP1400PRO is an 18" 4-stroke petrol engine compactor / wacker plate, it is very well suited to paving work in pathways, gardening, and landscaping. This machine comes with a Lumag 2-year warranty.

FREE WHEEL KIT & PAVING PAD INCLUDED.

Equipment Features:

• This forward-running vibration plate with a very large base plate is particularly well suited for paving work, repair work in path construction, gardening and landscaping.
• The repositioning of the exciter enables a particularly fast feed with this model.
• Foldable handle compact size for transport and storage.
• Protective grille on the exhaust, handle dampened against vibrations  Equipped with V-belts protected on all sides, protective frame, rubber mat and transport undercarriage.
• This forward running vibration plate with a very large base plate is particularly well suited for paving work, repair work in pathways, gardening and landscaping.
• The repositioning of the exciter enables a particularly fast advance in this model.
• Foldable handle compact size for transport and storage.
• Protective grille on the exhaust, handle dampened against vibrations Equipped with all-round protected V-belt and protective frame

Technical Specification:

• Motor / drive1-cylinder 4-stroke OHV engine
• Motor power P1 / P24.8 / 4.1 kW at 3,000 rpm
• Fuel tank: 3.6L
• Engine oil : 0.6L
• Plate length: 585 mm
• Plate width: 450 mm
• Frequency: 70 Hz
• Centrifugal force: 20 kN
• Area performance 540 m² / hour
• Max. Feed 20 - 24 m / min.
• Vibration shocks: 4,200 vpm
• Compaction depth: 30 cmMax.
• Permissible inclination of the motor: 20 °
• Sound power level LWA: 108 dB (A)
• Operating weight approx: 126 kg
• Transport weight (net / gross) approx:  130/140 kg
• Packaging dimensions (LxWxH): 680 x 480 x 665 (755) mm
